Quick Details Feature: Truck Crane Condition: New Application: Construction Brand Name: XCMG Model Number: QY35K5 Certification: ISO,CE Rated Loading Capacity: 35t Rated Lifting Moment: 1200kN.M Dimension: 12620*2500*3350mm Max. Lifting Load: 16t Max. Lifting Height: 54.6m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 6m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. Engine:SC9DK320Q3 2. Rated output:235KW 3. Rated Capacity:35ton 4. Fully extended boom+jib 54.6m 5. Weight 36930kg Technical Parameters Dimension Unit QY35K5 Overall length mm 12620 Overall width mm 2500 Overall height mm 3350 Weight Total weight in travel kg 36930 Front axle load kg 12330 Rear axle load kg 24600 Power Engine model SC9DK320Q3 Engine rated power kW/(r/min) 235/2200 Engine rated torque N.m/(r/min) 1250/1400 Travel Max. travel speed km/h 75 Min. turning diameter m 19.5 Min. ground clearance mm 260 Approach angle ° 17 Departure angle ° 15.7 Max. grade ability % 40 Fuel consumption for 100km L 30 Main performance Max. rated total lifting capacity t 35 Min. rated working radius m 3000 Turning radius at turntable tail m 3.055 Max. lifting torque kN.m 1200 Base boom m 10.5 Fully extended boom m 39.6 Fully extended boom+ jib m 54.6 Longitudinal outrigger span m 5.35 Lateral outrigger span m 6 Working speed Boom luffing time s 68 Boomfull extension time s ≤155 Max. swing speed r/min ≥2.5 Max. speed of main winch (single rope) (no load) m/min ≥130 Max. speed of aux. winch (single rope) (no load) m/min ≥130

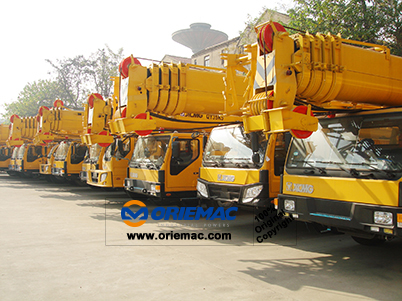

Feature: Truck Crane
Condition: New
Application: Construction
Brand Name: XCMG
Model Number: QY35K5
Certification: ISO,CE
Rated Loading Capacity: 35t
Rated Lifting Moment: 1200kN.M
Dimension: 12620*2500*3350mm
Max. Lifting Load: 16t
Max. Lifting Height: 54.6m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 6m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QY35K5 Overall length mm 12620 Overall width mm 2500 Overall height mm 3350 Weight Total weight in travel kg 36930 Front axle load kg 12330 Rear axle load kg 24600 Power Engine model SC9DK320Q3 Engine rated power kW/(r/min) 235/2200 Engine rated torque N.m/(r/min) 1250/1400 Travel Max. travel speed km/h 75 Min. turning diameter m 19.5 Min. ground clearance mm 260 Approach angle ° 17 Departure angle ° 15.7 Max. grade ability % 40 Fuel consumption for 100km L 30 Main performance Max. rated total lifting capacity t 35 Min. rated working radius m 3000 Turning radius at turntable tail m 3.055 Max. lifting torque kN.m 1200 Base boom m 10.5 Fully extended boom m 39.6 Fully extended boom+ jib m 54.6 Longitudinal outrigger span m 5.35 Lateral outrigger span m 6 Working speed Boom luffing time s 68 Boomfull extension time s ≤155 Max. swing speed r/min ≥2.5 Max. speed of main winch (single rope) (no load) m/min ≥130 Max. speed of aux. winch (single rope) (no load) m/min ≥130
Dimension
Unit
QY35K5
Overall length
mm
12620
Overall width
2500
Overall height
3350
Weight
Total weight in travel
kg
36930
Front axle load
12330
Rear axle load
24600
Power
Engine model
SC9DK320Q3
Engine rated power
kW/(r/min)
235/2200
Engine rated torque
N.m/(r/min)
1250/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
19.5
Min. ground clearance
260
Approach angle
°
17
Departure angle
15.7
Max. grade ability
%
40
Fuel consumption for 100km
L
30
Main performance
Max. rated total lifting capacity
t
35
Min. rated working radius
3000
Turning radius at turntable tail
3.055
Max. lifting torque
kN.m
1200
Base boom
10.5
Fully extended boom
39.6
Fully extended boom+ jib
54.6
Longitudinal outrigger span
5.35
Lateral outrigger span
6
Working speed
Boom luffing time
s
68
Boomfull extension time
≤155
Max. swing speed
r/min
≥2.5
Max. speed of main winch (single rope) (no load)
m/min
≥130
Max. speed of aux. winch (single rope) (no load)
