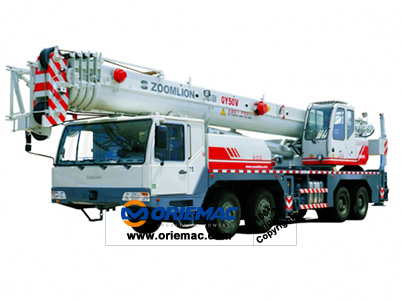

50ton Truck Crane QY50V



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QY50V

Certification: ISO,CE

Rated Loading Capacity: 50t

Rated Lifting Moment: 1764kN.M

Dimension: 13300×2750×3650mm

Max. Lifting Load: 50t

Max. Lifting Height: 58.3m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: white

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QY50V

Overall length

mm

13300

Overall width

mm

2750

Overall height

mm

3650

Weight





Total weight in travel

kg

41000

Front axle load

kg

17200

Rear axle load

kg

23800

Power





Engine model



WP10.336

Engine rated power

kW/(r/min)

247/2200

Engine rated torque

N.m/(r/min)

1250/1200~1600

Travel





Max. travel speed

km/h

76

Min. turning diameter

m

12

Min. ground clearance

mm

280

Approach angle

°


Departure angle

°

Max. grade ability

%

40

Fuel consumption for 100km

L

48

Main performance





Max. rated total lifting capacity

kg

50000

Min. rated working radius

m

Turning radius at turntable tail

m

Max. lifting torque

kN.m

1746

Base boom

m

11.6

Fully extended boom

m

42.1

Fully extended boom+ jib

m

58.3

Longitudinal outrigger span

m


Lateral outrigger span

m


Working speed





Boom luffing time

s

50

Boomfull extension time

s

95

Max. swing speed

r/min

0~2

Max. speed of main winch (single rope) (no load)

m/min

130

Max. speed of aux. winch (single rope) (no load)

m/min

72
