Quick Details Feature: Truck Crane Condition: New Application: Construction Brand Name: SANY Model Number: STC500 Certification: ISO,CE Rated Loading Capacity: 50t Rated Lifting Moment: 1886.5kN.M Dimension: 13750×2750×3650mm Max. Lifting Load: 50t Max. Lifting Height: 12m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 7.2/6.0m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit STC500 Overall length mm 13750 Overall width mm 2750 Overall height mm 3650 Weight Total weight in travel kg 42000 Front axle load kg 16000 Rear axle load kg 26000 Power Engine model Engine rated power kW/(r/min) Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 85 Min. turning diameter m 12 Min. ground clearance mm 295 Approach angle ° ≥18 Departure angle ° ≥12 Max. grade ability % 40 Fuel consumption for 100km L ≤45 Main performance Max. rated total lifting capacity t 50 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 1886.5 Base boom m 12 Fully extended boom m 43.2 Fully extended boom+ jib m 59.2 Longitudinal outrigger span m 7.2 Lateral outrigger span m 6.0 Working speed Boom luffing time s 80/80 Boomfull extension time s 200/120 Max. swing speed r/min 0～2.0 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130

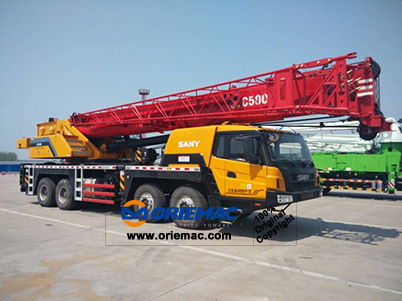

Feature: Truck Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: STC500
Certification: ISO,CE
Rated Loading Capacity: 50t
Rated Lifting Moment: 1886.5kN.M
Dimension: 13750×2750×3650mm
Max. Lifting Load: 50t
Max. Lifting Height: 12m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 7.2/6.0m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit STC500 Overall length mm 13750 Overall width mm 2750 Overall height mm 3650 Weight Total weight in travel kg 42000 Front axle load kg 16000 Rear axle load kg 26000 Power Engine model Engine rated power kW/(r/min) Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 85 Min. turning diameter m 12 Min. ground clearance mm 295 Approach angle ° ≥18 Departure angle ° ≥12 Max. grade ability % 40 Fuel consumption for 100km L ≤45 Main performance Max. rated total lifting capacity t 50 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 1886.5 Base boom m 12 Fully extended boom m 43.2 Fully extended boom+ jib m 59.2 Longitudinal outrigger span m 7.2 Lateral outrigger span m 6.0 Working speed Boom luffing time s 80/80 Boomfull extension time s 200/120 Max. swing speed r/min 0～2.0 Max. speed of main winch (single rope) (no load) m/min 130 Max. speed of aux. winch (single rope) (no load) m/min 130
Dimension
Unit
STC500
Overall length
mm
13750
Overall width
2750
Overall height
3650
Weight
Total weight in travel
kg
42000
Front axle load
16000
Rear axle load
26000
Power
Engine model
Engine rated power
kW/(r/min)
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
85
Min. turning diameter
m
12
Min. ground clearance
295
Approach angle
°
≥18
Departure angle
≥12
Max. grade ability
%
40
Fuel consumption for 100km
L
≤45
Main performance
Max. rated total lifting capacity
t
50
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
1886.5
Base boom
Fully extended boom
43.2
Fully extended boom+ jib
59.2
Longitudinal outrigger span
7.2
Lateral outrigger span
6.0
Working speed
Boom luffing time
s
80/80
Boomfull extension time
200/120
Max. swing speed
r/min
0～2.0
Max. speed of main winch (single rope) (no load)
m/min
130
Max. speed of aux. winch (single rope) (no load)
