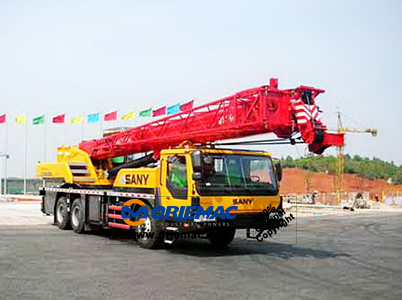

25ton Truck Crane STC250



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: SANY

Model Number: STC250

Certification: ISO,CE

Rated Loading Capacity: 25t

Rated Lifting Moment: 962kN.M

Dimension: 12750×2500×3550mm

Max. Lifting Load: 25t

Max. Lifting Height: 11m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 6.2/5.3m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

STC250

Overall length

mm

12750

Overall width

mm

2500

Overall height

mm

3550

Weight





Total weight in travel

kg

30000

Front axle load

kg

6500

Rear axle load

kg

19550

Power





Engine model





Engine rated power

kW/(r/min)



Engine rated torque

N.m/(r/min)



Travel





Max. travel speed

km/h

80

Min. turning diameter

m

10

Min. ground clearance

mm

220

Approach angle

°

17

Departure angle

°

12

Max. grade ability

%

38

Fuel consumption for 100km

L

37

Main performance





Max. rated total lifting capacity

t

25

Min. rated working radius

m

3

Turning radius at turntable tail

m



Max. lifting torque

kN.m

962

Base boom

m

11

Fully extended boom

m

34

Fully extended boom+ jib

m

42

Longitudinal outrigger span

m

6.2

Lateral outrigger span

m

5.3

Working speed





Boom luffing time

s

70/55

Boomfull extension time

s

70/50

Max. swing speed

r/min

≥2

Max. speed of main winch (single rope) (no load)

m/min

≥120

Max. speed of aux. winch (single rope) (no load)

m/min

≥120
