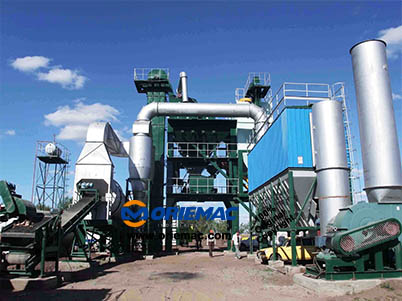

175t/h Asphalt Mixing Plant RD175

Quick Details

Feature: Asphalt Mixing Plant

Condition: New

Application: Construction

Brand Name: ROADY

Model Number: RD175

Certification: ISO,CE

Rated production capacity: 175t/h

Cold hopper volume: 8m³

Dimension: 37000*32000*15000mm

Mixer capacity: 2200kg

Engine rated power: 455kW

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Fuel Consumption: 5.5-7 kg/t

After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days

Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Performance

Unit

RD175

Overall length

mm

37000

Overall width

mm

32000

Overall height

mm

15000

Main performance

　

　

Rated production capacity

t/h

175

Cold hopper quantity

5

Cold hopper volume

m³

8

Standard burner

Oil burner

Oil Consumption

kg/t

12

Screen

layers

5

Mixer capacity

kg/batch

2200

Powder temporary storage capacity

m³

1.8

New filler silo

Old filler silo

Finished warehouse capacity

optional

Asphalt tank

m³

3*50

Heavy oil tanks

Light oil tanks

Hot oil stove

5*104

Total installed power

kW

532.47
