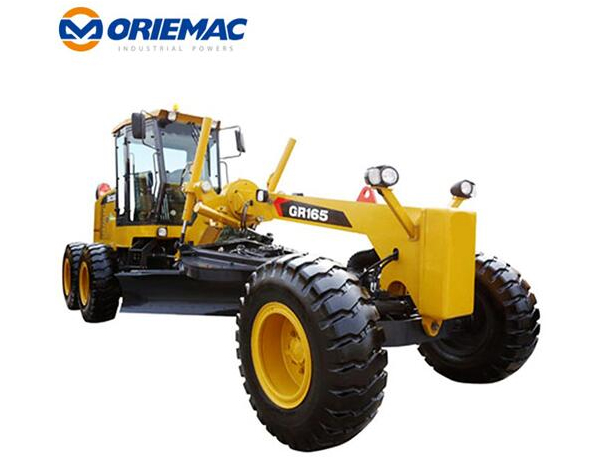

125kW Oriemac Motor Grader GR165

Basic specification

Engine model

D6114

Rated power/speed

125kW/2300rpm

Dimension(LxWxH)

8900×2625×3470mm

Operating weight(Standard)

15000kg

Performance specification

Travelling speed ,forward

5811192338 km/h

Travelling speed ,reverse

51123 km/h

Tractive force(f=0.75)

77KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.31.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

3965×610mm
