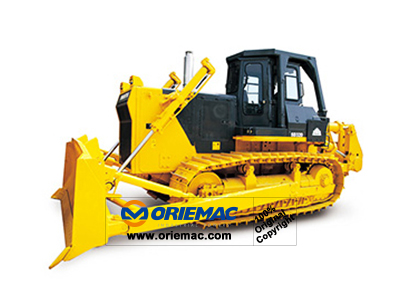

3.75ton Bulldozer SD32D



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: SHANTUI

Model Number: SD32D

Certification: ISO,CE

Rated Loading Capacity: 3.75t

Bucket Capacity: 6.2/10/11.7m3

Dimension:  6880*4130*3640mm

Max. Lifting Load: 3.75t

Engine: NTA855-C360

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD32D

Overall length

mm

6880

Overall width

mm

4130

Overall height

mm

3640

Ground contact length of track

mm

3150

Track shoe width

mm

560

Weight





Total weight

kg

37500

Power





Engine model



NTA855-C360

Engine rated power

kW

235

Engine rated speed

r/min

2000

Travel





Travel speed 1st (forward/backward)

km/h

0~3.6/0~4.4

Travel speed 2st (forward/backward)

km/h

0~6.6/0~7.8

Main performance





Operation weight

t

37.5

Blade capacity

m3

6.2/10/11.7

Gradeability

0

30

Ground pressure

kpa

0.106

Shovel blade width

m

4.13

Shovel blade height

m

1.59

Max. hoisting height

m

1.56

Max. digging depth

m

0.56

Max. gradient

m

0.1

Track gauge

m

2.14

Caterpillar track pitch

m

0.2286

Min. swing radius

m



Min. ground clearance

m
