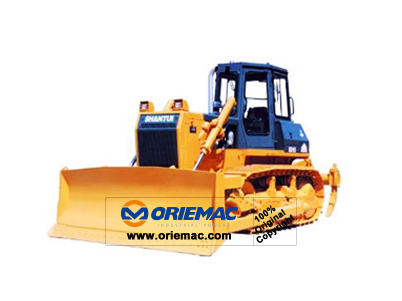

1.7ton Bulldozer SD16H



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: SHANTUI

Model Number: SD16H

Certification: ISO,CE

Rated Loading Capacity: 1.7t

Bucket Capacity: 4.5m3

Dimension:  6366*3388*3174mm

Max. Lifting Load: 1.7t

Engine: WD10G175E15 / C6121ZG70B

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SD16H

Overall length

mm

6366

Overall width

mm

3388

Overall height

mm

3174

Ground contact length of track

mm



Track shoe width

mm

510

Weight





Total weight

kg

17000

Power





Engine model



WD10G175E15 / C6121ZG70B

Engine rated power

kW

120

Engine rated speed

r/min

1850

Travel





Travel speed 1st (forward/backward)

km/h

0-3.29/0-4.28

Travel speed 2st (forward/backward)

km/h

0-5.28/0-7.59

Main performance





Operation weight

t

17

Blade capacity

m3

4.5

Gradeability

0

30

Ground pressure

kpa

0.067

Shovel blade width

m

3.388

Shovel blade height

m

1.149

Max. hoisting height

m



Max. digging depth

m

0.54

Max. gradient

m

0.4

Track gauge

m



Caterpillar track pitch

m

0.2032

Min. swing radius

m

4.7

Min. ground clearance

m

0.4
