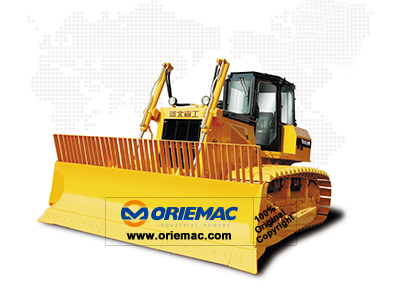

18.3ton Bulldozer TS165-2HW



Quick Details

Feature: Bulldozer

Condition: New

Application: Construction

Brand Name: HBXG

Model Number: TS165-2HW

Certification: ISO,CE

Gradeability: 30/250

Bucket Capacity: 4.52m3

Dimension:  5585*4222*3190mm

Ground pressure: 39.2kpa

Engine: WD10G178E25

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

TYS165-2HW

Overall length

mm

5585

Overall width

mm

4222

Overall height

mm

3190

Ground contact length of track

mm


Track shoe width

mm

800

Weight





Total weight

kg

18300

Power





Engine model



WD10G178E25

Engine rated power

kW

121

Engine rated speed

r/min

1850

Travel





Travel speed 1st (forward/backward)

km/h

0~2.702/0~3.778

Travel speed 2st (forward/backward)

km/h

0~3.558/0~4.974

Main performance





Operation weight

t

18.3

Blade capacity

m3

4.52

Gradeability

0

30/25

Ground pressure

kpa

39.2

Shovel blade width

m

4.222

Shovel blade height

m


Max. hoisting height

m


Max. digging depth

m

0.4

Max. gradient

m


Track gauge

m

2.3

Caterpillar track pitch

m

0.203

Min. swing radius

m


Min. ground clearance

m

0.3745
