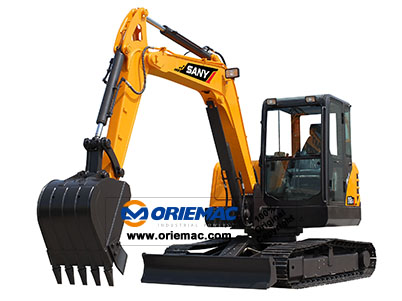

6.0ton Excavator SY60C-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY60C-9

Certification: ISO,CE

Rated Loading Capacity: 6.0t

Bucket Capacity: 0.1~0.28m3

Dimension:  5925*2005*2630mm

Max. Lifting Load: 6.0t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY60C-9

Overall length

mm

5925

Overall width

mm

2005

Overall height

mm

2630

Track shoe length

mm

2700

Track shoe width

mm



Weight





Total weight

kg

6000

Power





Engine model





Engine rated power

kW

40.9

Engine rated speed

r/min

2100

Travel





Travel speed

km/h

4.22/2.25

Main performance





Rated load

t

6.0

Bucket capacity

m3

0.1~0.28

Gradeability

0

70

Ground pressure

kpa

30.7

Bucket digging force

KN

45

Arm digging force

KN

33

Max. tractive force

KN



Max. dumping clearance

m

3.975

Max. digging depth

m

3.77

Max. digging radius

m

6.09

Min. swing radius

m

2.555

Steering speed

r/min

9.6

Track gauge

m

1.6

Caterpillar wheelbase

m

2.185

Min. ground clearance

m

0.37
