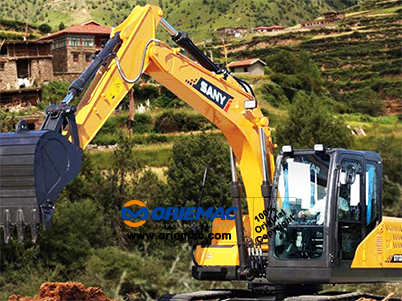

13.5ton Excavator SY135C-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY135C-9

Certification: ISO,CE

Rated Loading Capacity: 13.5t

Bucket Capacity: 0.22~0.7m3

Dimension:  7700*2550*2815mm

Max. Lifting Load: 13.5t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY135C-9

Overall length

mm

7700

Overall width

mm

2550

Overall height

mm

2815

Track shoe length

mm

3655

Track shoe width

mm



Weight





Total weight

kg

13500

Power





Engine model





Engine rated power

kW

72.7

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

5.5/3.5

Main performance





Rated load

t

13.5

Bucket capacity

m3

0.22~0.7

Gradeability

0

70

Ground pressure

kpa

41.7

Bucket digging force

KN

92.7

Arm digging force

KN

66.13

Max. tractive force

KN



Max. dumping clearance

m

6.18

Max. digging depth

m

5.51

Max. digging radius

m

8.29

Min. swing radius

m

2.5

Steering speed

r/min

12

Track gauge

m

1.99

Caterpillar wheelbase

m



Min. ground clearance

m

0.425
