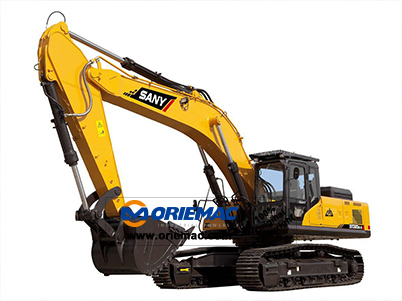

24.2ton Excavator SY235C-9



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SY235C-9

Certification: ISO,CE

Rated Loading Capacity: 24.2t

Bucket Capacity: 1.1~1.3m3

Dimension:  9920*2980*3550mm

Max. Lifting Load: 24.2t

Engine:

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SY235C-9

Overall length

mm

9920

Overall width

mm

2980

Overall height

mm

3550

Track shoe length

mm

4445

Track shoe width

mm



Weight





Total weight

kg

24200

Power





Engine model





Engine rated power

kW

128.5

Engine rated speed

r/min

2100

Travel





Travel speed

km/h

5.5/3.5

Main performance





Rated load

t

24.2

Bucket capacity

m3

1.1~1.3

Gradeability

0

70

Ground pressure

kpa

47.6

Bucket digging force

KN

175

Arm digging force

KN

122

Max. tractive force

KN



Max. dumping clearance

m

6.725

Max. digging depth

m

6.785

Max. digging radius

m

10.15

Min. swing radius

m

3.8

Steering speed

r/min

11

Track gauge

m

2.38

Caterpillar wheelbase

m



Min. ground clearance

m

0.44
