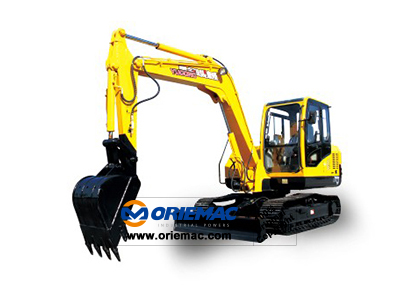

6.3ton Excavator WY75-8



Quick Details

Feature: Excavator

Condition: New

Application: Construction

Brand Name: YUGONG

Model Number: WY75-8

Certification: ISO,CE

Rated Loading Capacity: 6.3t

Bucket Capacity: 0.25m3

Dimension:  6200*2050*2660mm

Max. Lifting Load: 6.3t

Engine: YC4F60Z

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

WY75-8

Overall length (Transportation)

mm

6200

Overall width (Transportation)

mm

2050

Overall height (Transportation)

mm

2660

Track shoe length

mm



Track shoe width

mm

400

Weight





Total weight

kg

6310

Power





Engine model



YC4F60Z

Engine rated power

kW

43

Engine rated speed

r/min

2200

Travel





Travel speed

km/h

3.7/1.9

Main performance





Rated load

t

6.3

Bucket capacity

m3

0.25

Gradeability

0



Hydraulic system pressure

Mpa

21.5

Bucket digging force

KN



Arm digging force

KN



Max. tractive force

KN



Max. dumping clearance

m

3.92

Max. digging depth

m

3.97

Max. digging radius

m

6.4

Max. digging height

m

5.84

Back-end swing radius

m

1.77

Steering speed

r/min

10

Track gauge

m



Wheel base

m



Min. ground clearance

m
