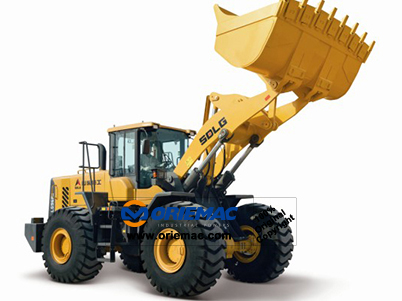

6.0ton Wheel Loader LG968N



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: SDLG

Model Number: LG968N

Certification: ISO,CE

Rated Loading Capacity: 6.0t

Bucket Capacity: 3.0~5.5m3

Dimension: 8560×3220×3442mm

Max. Lifting Load: 6.0t

Engine: WD10G240E202

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

LG968N

Overall length

mm

8560

Overall width

mm

3220

Overall height

mm>

3442

Weight





Total weight

kg

19400~20550

Power





Engine model



WD10G240E202

Engine rated power

kW

178

Engine rated speed

r/min

2100

Travel





Travel speed 1st (forward/backward)

km/h

0~7

Travel?speed 2st (forward/backward)

km/h

0~13

Main performance





Rated load

t

6.0

Bucket capacity

m3

3.0~5.5

Dumping clearance

m

3.26~3.86

Dumping reach

m

1.1~1.32

Max. breakout force

KN

≥210

Max. traction force

KN

≥170

Articulation angle

0

45

Gradeability

0

30

Wheel base

m

3.4

Tread

m

2.25

Tyre size

m



Min. ground clearance

m

0.517

Min. turning radius

m

6.398

Working speed





Hydraulic cycle time – raise

s



Total hydraulic cycle time

s

11.7
