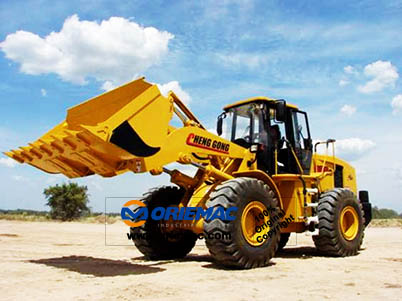

5.0ton Wheel Loader CG956G



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: CHENGGONG

Model Number: CG956G

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 2.5-3.6m3

Dimension:  8020×3000×3480mm

Max. Lifting Load: 5.0t

Engine: WD10G

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

CG956G

Overall length

mm

8020

Overall width

mm

3000

Overall height

mm

3480

Weight





Total weight

kg

16600

Power





Engine model



WD10G

Engine rated power

kW

162

Engine rated speed

r/min

2200

Travel





Max. travel speed

km/h

36

Main performance





Rated load

t

5.0

Bucket capacity

m3

2.5-3.6

Dumping clearance

m

3.196

Dumping reach

m

1.033

Max. breakout force

KN

170

Max. traction force

KN



Steering angle

0



Gradeability

0



Wheel base

m

3.28

Tread

m



Tyre size

m



Min. ground clearance

m



Min. turning radius

m

6.57

Working speed





Boom cycle time – raise

s

6

Total hydraulic cycle time

s

10.7
