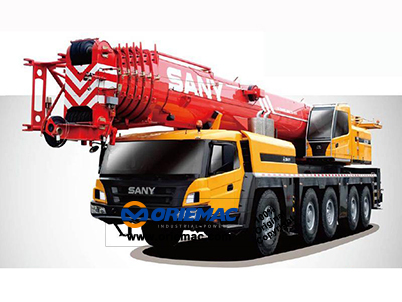

350ton All Terrain Crane SAC3500



Quick Details

Feature: All Terrain Crane

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SAC3500

Certification: ISO,CE

Rated Loading Capacity: 350t

Rated Lifting Moment: 11500kN.M

Dimension: 18035×3000×4000mm

Max. Lifting Load: 350t

Max. Lifting Height: 70m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 8.95/8.5/5.6m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SAC3500

Overall length

mm

18035

Overall width

mm

3000

Overall height

mm

4000

Weight





Total weight in travel

kg

72000

Front axle load

kg

2835

Rear axle load

kg

2178

Power





Engine model



OM502LA

Engine rated power

kW/(r/min)

400/1800

Engine rated torque

N.m/(r/min)

2800

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

≤ 24

Min. ground clearance

mm

330

Approach angle

°

16

Departure angle

°

18

Max. grade ability

%

49

Fuel consumption for 100km

L



Main performance





Max. rated total lifting capacity

t

350

Min. rated working radius

m

Turning radius at turntable tail

m

5750

Max. lifting torque

kN.m

11500

Base boom

m

14.9

Fully extended boom

m

70

Fully extended boom+ jib

m

112

Longitudinal outrigger span

m

8.95

Lateral outrigger span

m

8.5/5.6

Working speed





Boom luffing time

s

≥75

Boomfull extension time

s



Max. swing speed

r/min

≤1.2

Max. speed of main winch (single rope) (no load)

m/min

130

Max. speed of aux. winch (single rope) (no load)

m/min

130
