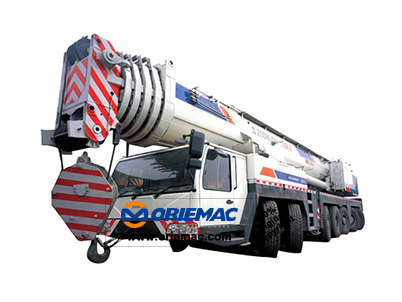

400ton All Terrain Crane QAY400



Quick Details

Feature: All Terrain Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QAY400

Certification: ISO,CE

Rated Loading Capacity: 400t

Rated Lifting Moment: 11760kN.M

Dimension: 19320×3000×4000mm

Max. Lifting Load: 400t

Max. Lifting Height: 70.5m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 9.84/9m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QAY400

Overall length

mm

19320

Overall width

mm

3000

Overall height

mm

4000

Weight





Total weight in travel

kg

84000

Front axle load

kg



Rear axle load

kg



Power





Engine model





Engine rated power

kW/(r/min)

240/2200

Engine rated torque

N.m/(r/min)

1300/1600

Travel





Max. travel speed

km/h

75

Min. turning diameter

m

24

Min. ground clearance

mm

355

Approach angle

°

16.3

Departure angle

°

16

Max. grade ability

%

42

Fuel consumption for 100km

L



Main performance





Max. rated total lifting capacity

t

400

Min. rated working radius

m

Turning radius at turntable tail

m



Max. lifting torque

kN.m

11760

Base boom

m

15

Fully extended boom

m

70

Fully extended boom+ jib

m

148

Longitudinal outrigger span

m

9.84

Lateral outrigger span

m

9.0

Working speed





Boom luffing time

s

90

Boomfull extension time

s

600

Max. swing speed

r/min

0~1.5

Max. speed of main winch (single rope) (no load)

m/min

130

Max. speed of aux. winch (single rope) (no load)

m/min

130
