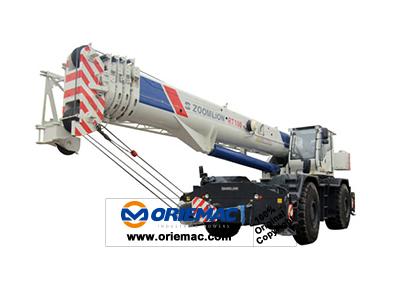

100ton Rough Terrain Crane RT100



Quick Details

Feature: Rough Terrain Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: RT100

Certification: ISO,CE

Rated Loading Capacity: 100t

Rated Lifting Moment: 3339kN.M

Dimension: 14247×3620×3960mm

Max. Lifting Load: 100t

Max. Lifting Height: 45.6m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 8.0/7.9m

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

RT100

Overall length

mm

14247

Overall width

mm

3620

Overall height

mm

3960

Weight





Total weight in travel

kg

65000

Front axle load

kg

33200

Rear axle load

kg

31800

Power





Engine model





Engine rated power

kW/(r/min)



Engine rated torque

N.m/(r/min)



Travel





Max. travel speed

km/h

24

Min. turning diameter

m



Min. ground clearance

mm



Approach angle

°



Departure angle

°



Max. grade ability

%

74

Fuel consumption for 100km

L



Main performance





Max. rated total lifting capacity

t

100

Min. rated working radius

m

Turning radius at turntable tail

m



Max. lifting torque

kN.m

3339

Base boom

m

11.5

Fully extended boom

m

43

Fully extended boom+ jib

m

61.5

Longitudinal outrigger span

m

8.0

Lateral outrigger span

m

7.9

Working speed





Boom luffing time

s

82

Boomfull extension time

s

170

Max. swing speed

r/min

0~1.5

Max. speed of main winch (single rope) (no load)

m/min

126

Max. speed of aux. winch (single rope) (no load)

m/min
