Quick Details Feature: Rough Terrain Crane Condition: New Application: Construction Brand Name: SANY Model Number: SRC350 Certification: ISO,CE Rated Loading Capacity: 35t Rated Lifting Moment: 1139kN.M Dimension: 12150×2625×3410mm Max. Lifting Load: 35t Max. Lifting Height: 33.9m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 6.15/6.15m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SRC350 Overall length mm 12150 Overall width mm 2625 Overall height mm 3410 Weight Total weight in travel kg 32300 Front axle load kg Rear axle load kg Power Engine model Engine rated power kW/(r/min) 119 Engine rated torque N.m/(r/min) 732 Travel Max. travel speed km/h 37 Min. turning diameter m 12.4 Min. ground clearance mm 400 Approach angle ° 23.9 Departure angle ° 23.3 Max. grade ability % 75 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 35 Min. rated working radius m 3.05 Turning radius at turntable tail m Max. lifting torque kN.m 1139 Base boom m 10 Fully extended boom m 31.5 Fully extended boom+ jib m 45.2 Longitudinal outrigger span m 6.15 Lateral outrigger span m 6.15 Working speed Boom luffing time s 43 Boomfull extension time s Max. swing speed r/min 2.7 Max. speed of main winch (single rope) (no load) m/min 140 Max. speed of aux. winch (single rope) (no load) m/min 140

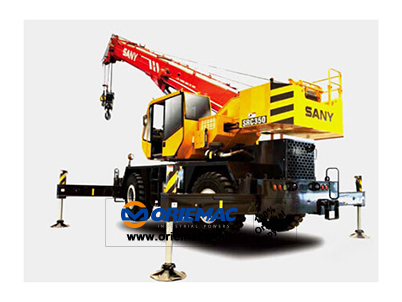

Feature: Rough Terrain Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SRC350
Certification: ISO,CE
Rated Loading Capacity: 35t
Rated Lifting Moment: 1139kN.M
Dimension: 12150×2625×3410mm
Max. Lifting Load: 35t
Max. Lifting Height: 33.9m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 6.15/6.15m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SRC350 Overall length mm 12150 Overall width mm 2625 Overall height mm 3410 Weight Total weight in travel kg 32300 Front axle load kg Rear axle load kg Power Engine model Engine rated power kW/(r/min) 119 Engine rated torque N.m/(r/min) 732 Travel Max. travel speed km/h 37 Min. turning diameter m 12.4 Min. ground clearance mm 400 Approach angle ° 23.9 Departure angle ° 23.3 Max. grade ability % 75 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 35 Min. rated working radius m 3.05 Turning radius at turntable tail m Max. lifting torque kN.m 1139 Base boom m 10 Fully extended boom m 31.5 Fully extended boom+ jib m 45.2 Longitudinal outrigger span m 6.15 Lateral outrigger span m 6.15 Working speed Boom luffing time s 43 Boomfull extension time s Max. swing speed r/min 2.7 Max. speed of main winch (single rope) (no load) m/min 140 Max. speed of aux. winch (single rope) (no load) m/min 140
Dimension
Unit
SRC350
Overall length
mm
12150
Overall width
2625
Overall height
3410
Weight
Total weight in travel
kg
32300
Front axle load
Rear axle load
Power
Engine model
Engine rated power
kW/(r/min)
119
Engine rated torque
N.m/(r/min)
732
Travel
Max. travel speed
km/h
37
Min. turning diameter
m
12.4
Min. ground clearance
400
Approach angle
°
23.9
Departure angle
23.3
Max. grade ability
%
75
Fuel consumption for 100km
L
Main performance
Max. rated total lifting capacity
t
35
Min. rated working radius
3.05
Turning radius at turntable tail
Max. lifting torque
kN.m
1139
Base boom
10
Fully extended boom
31.5
Fully extended boom+ jib
45.2
Longitudinal outrigger span
6.15
Lateral outrigger span
Working speed
Boom luffing time
s
43
Boomfull extension time
Max. swing speed
r/min
2.7
Max. speed of main winch (single rope) (no load)
m/min
140
Max. speed of aux. winch (single rope) (no load)
