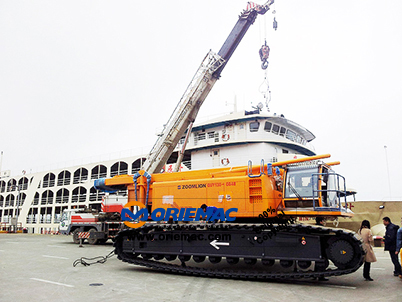

130ton Crawler Crane QUY130



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QUY130

Certification: ISO,CE

Rated Loading Capacity: 130t

Rated Lifting Moment: 6482.7kN.M

Dimension: 9550*6500*3200mm

Max. Lifting Load: 130t

Max. Lifting Height: 104m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 19

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QUY130

Overall length

mm

9550

Overall width

mm

6500

Overall height

mm

3200

Weight





Total mass (with basic boom)

t

113.8

Maximum lifting weight of fixed jib

t

13

Power





Engine model



Engine rated power

kW/(r/min)

209/2000

Engine rated torque

N.m/(r/min)

1356/1400

Travel





Max. travel speed

km/h

0~1.3

Max. grade ability

%

30

Mean ground pressure

MPa

0.1

Main performance





Max. rated total lifting capacity

t

130

Max. lifting torque

kN.m

6482.7

Base boom

m

19

Fully extended boom

m

73

Fully extended boom+ jib

m

104

Boom elevating angle

°

Working speed





Max. swing speed

r/min

0~2.2

Max. single rope hoist speed

m/min

105

Max. single rope boom luffer speed

m/min

52
