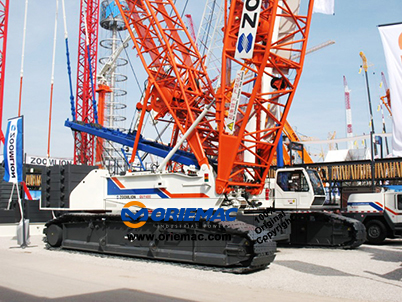

400ton Crawler Crane QUY400



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QUY400

Certification: ISO,CE

Rated Loading Capacity: 400t

Rated Lifting Moment: 3925.88kN.M

Dimension: 13900*3100*3240mm

Max. Lifting Load: 400t

Max. Lifting Height: 84m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Span: 24

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QUY400

Overall length

mm

13900

Overall width

mm

3100

Overall height

mm

3240

Weight





Total mass (with basic boom)

t

350

Maximum lifting weight of fixed jib

t

80

Power





Engine model



Engine rated power

kW/(r/min)

343/1800

Engine rated torque

N.m/(r/min)

2150/1100~1500

Travel





Max. travel speed

km/h

0~1.4

Max. grade ability

%

30

Mean ground pressure

MPa

0.149

Main performance





Max. rated total lifting capacity

t

400

Max. lifting torque

kN.m

3925.88

Base boom

m

24

Fully extended boom

m

84

Fully extended boom+ jib

m

120

Boom elevating angle

°

Working speed





Max. swing speed

r/min

0~1

Max. single rope hoist speed

m/min

140

Max. single rope boom luffer speed

m/min

2×0~60
