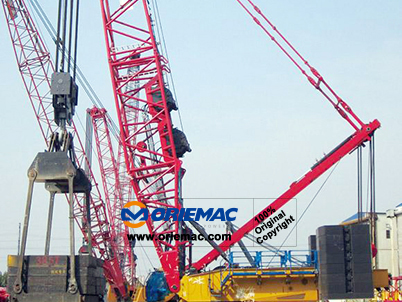

500ton Crawler Crane SCC5000A



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: SANY

Model Number: SCC5000A

Certification: ISO,CE

Rated Loading Capacity: 500t

Rated Lifting Moment: 29400kN.M

Dimension: 13290*3000*3200mm

Max. Lifting Load: 500t

Max. Lifting Height: 84m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SCC5000A

Overall length

mm

13290

Overall width

mm

3000

Overall height

mm

3200

Weight





Total mass (with basic boom)

t

370

Max. single shipping weight

t

48.8/64.6

Power





Engine model




Engine rated power

kW/(r/min)

447/1800

Engine rated torque

N.m/(r/min)

Travel





Max. travel speed

km/h

0~1.2/0~0.35

Max. grade ability

%

30

Mean ground pressure

MPa

0.19

Main performance





Max. rated total lifting capacity

t

500

Max. lifting torque

kN.m

29400

Base boom

m

24

Fully extended boom

m

84

Fully extended boom+ jib

m

96

Boom elevating angle

°

30-85

Working speed





Max. swing speed

r/min

0~1

Max. single rope hoist speed

m/min

0~115

Max. single rope boom luffer speed

m/min

(0~60)×2
