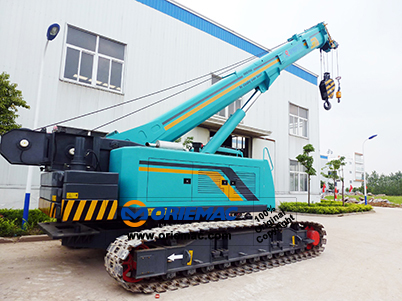

35ton Crawler Crane SMQ350A



Quick Details

Feature: Crawler Crane

Condition: New

Application: Construction

Brand Name: SMARTER

Model Number: SMQ350A

Certification: ISO,CE

Rated Loading Capacity: 35t

Rated Lifting Moment:  kN.M

Dimension: 12600*4500*3000mm

Max. Lifting Load: 35t

Max. Lifting Height: 39.2m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: White

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SMQ350A

Overall length

mm

12600

Overall width

mm

4500

Overall height

mm

3000

Weight





Total mass (with basic boom)

t

47.5

Balance weight

t

13

Power





Engine model



6BTAA5.9-C205A

Engine rated power

kW/(r/min)

153/2200

Engine rated torque

N.m/(r/min)

Travel





Max. travel speed

km/h

0~2.8

Max. grade ability

%

40

Mean ground pressure

MPa

Main performance





Max. rated total lifting capacity

t

35

Max. lifting torque

kN.m



Base boom

m

10.5

Fully extended boom

m

39.2

Fully extended boom+ jib

m

45.7

Boom elevating angle

°

-2~80

Working speed





Max. swing speed

r/min

0~2.0

Max. single rope hoist speed

m/min

120

Max. single rope boom luffer speed

m/min
