Quick Details Feature: Truck Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: QY25V Certification: ISO,CE Rated Loading Capacity: 25t Rated Lifting Moment: 980kN.M Dimension: 12800×2500×3430mm Max. Lifting Load: 25t Max. Lifting Height: 33.8m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: white After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QY25V Overall length mm 12800 Overall width mm 2500 Overall height mm 3430 Weight Total weight in travel kg 30000 Front axle load kg 6800 Rear axle load kg 23200 Power Engine model WP10.270 Engine rated power kW/(r/min) 199/2200 Engine rated torque N.m/(r/min) 1100/1300~1600 Travel Max. travel speed km/h 78 Min. turning diameter m ≤22 Min. ground clearance mm 220 Approach angle ° Departure angle ° Max. grade ability % 37 Fuel consumption for 100km L 45 Main performance Max. rated total lifting capacity kg 25000 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 980 Base boom m 11.5 Fully extended boom m 33.8 Fully extended boom+ jib m 41.6 Longitudinal outrigger span m Lateral outrigger span m Working speed Boom luffing time s 40 Boomfull extension time s 60 Max. swing speed r/min 0~2.2 Max. speed of main winch (single rope) (no load) m/min 120 Max. speed of aux. winch (single rope) (no load) m/min 100

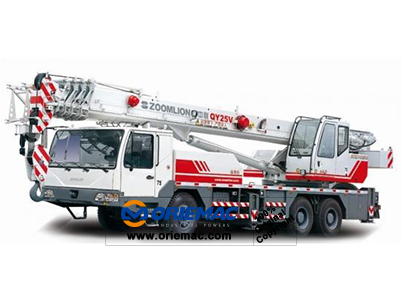

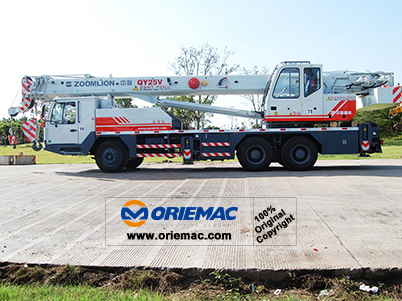

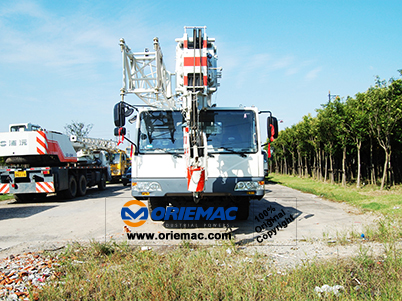

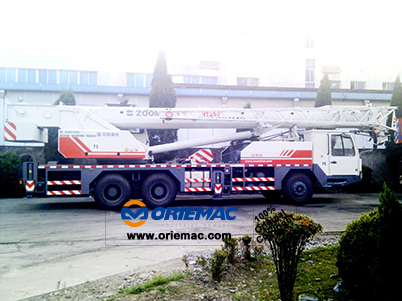

Feature: Truck Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: QY25V
Certification: ISO,CE
Rated Loading Capacity: 25t
Rated Lifting Moment: 980kN.M
Dimension: 12800×2500×3430mm
Max. Lifting Load: 25t
Max. Lifting Height: 33.8m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: white
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QY25V Overall length mm 12800 Overall width mm 2500 Overall height mm 3430 Weight Total weight in travel kg 30000 Front axle load kg 6800 Rear axle load kg 23200 Power Engine model WP10.270 Engine rated power kW/(r/min) 199/2200 Engine rated torque N.m/(r/min) 1100/1300~1600 Travel Max. travel speed km/h 78 Min. turning diameter m ≤22 Min. ground clearance mm 220 Approach angle ° Departure angle ° Max. grade ability % 37 Fuel consumption for 100km L 45 Main performance Max. rated total lifting capacity kg 25000 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 980 Base boom m 11.5 Fully extended boom m 33.8 Fully extended boom+ jib m 41.6 Longitudinal outrigger span m Lateral outrigger span m Working speed Boom luffing time s 40 Boomfull extension time s 60 Max. swing speed r/min 0~2.2 Max. speed of main winch (single rope) (no load) m/min 120 Max. speed of aux. winch (single rope) (no load) m/min 100
Dimension
Unit
QY25V
Overall length
mm
12800
Overall width
2500
Overall height
3430
Weight
Total weight in travel
kg
30000
Front axle load
6800
Rear axle load
23200
Power
Engine model
WP10.270
Engine rated power
kW/(r/min)
199/2200
Engine rated torque
N.m/(r/min)
1100/1300~1600
Travel
Max. travel speed
km/h
78
Min. turning diameter
m
≤22
Min. ground clearance
220
Approach angle
°
Departure angle
Max. grade ability
%
37
Fuel consumption for 100km
L
45
Main performance
Max. rated total lifting capacity
25000
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
980
Base boom
11.5
Fully extended boom
33.8
Fully extended boom+ jib
41.6
Longitudinal outrigger span
Lateral outrigger span
Working speed
Boom luffing time
s
40
Boomfull extension time
60
Max. swing speed
r/min
0~2.2
Max. speed of main winch (single rope) (no load)
m/min
120
Max. speed of aux. winch (single rope) (no load)
100
