Quick Details Feature: Truck Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: QY30V Certification: ISO,CE Rated Loading Capacity: 30t Rated Lifting Moment: 1132kN.M Dimension: 12900×2500×3465mm Max. Lifting Load: 30t Max. Lifting Height: 48.5m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: white After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QY30V Overall length mm 12900 Overall width mm 2500 Overall height mm 3465 Weight Total weight in travel kg 31830 Front axle load kg 6990 Rear axle load kg 24840 Power Engine model WD615.50 Engine rated power kW/(r/min) 206 Engine rated torque N.m/(r/min) 1160/1300~1600 Travel Max. travel speed km/h 78 Min. turning diameter m 11 Min. ground clearance mm 220 Approach angle ° Departure angle ° Max. grade ability % 37 Fuel consumption for 100km L 45 Main performance Max. rated total lifting capacity kg 32000 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 1132 Base boom m 11.1 Fully extended boom m 40.5 Fully extended boom+ jib m 49 Longitudinal outrigger span m 10 Lateral outrigger span m 10 Working speed Boom luffing time s 48 Boomfull extension time s 80 Max. swing speed r/min 0~2.6 Max. speed of main winch (single rope) (no load) m/min 145 Max. speed of aux. winch (single rope) (no load) m/min 88

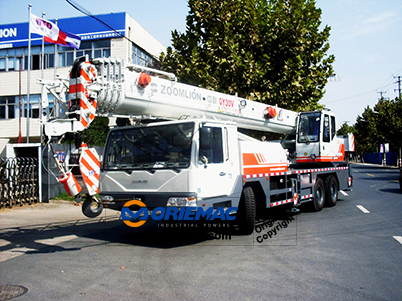

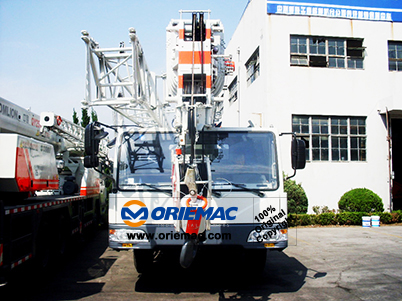

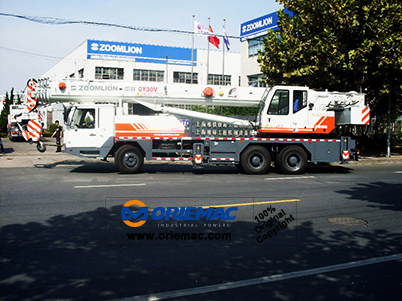

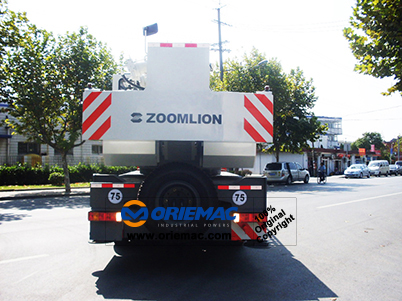

Feature: Truck Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: QY30V
Certification: ISO,CE
Rated Loading Capacity: 30t
Rated Lifting Moment: 1132kN.M
Dimension: 12900×2500×3465mm
Max. Lifting Load: 30t
Max. Lifting Height: 48.5m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: white
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QY30V Overall length mm 12900 Overall width mm 2500 Overall height mm 3465 Weight Total weight in travel kg 31830 Front axle load kg 6990 Rear axle load kg 24840 Power Engine model WD615.50 Engine rated power kW/(r/min) 206 Engine rated torque N.m/(r/min) 1160/1300~1600 Travel Max. travel speed km/h 78 Min. turning diameter m 11 Min. ground clearance mm 220 Approach angle ° Departure angle ° Max. grade ability % 37 Fuel consumption for 100km L 45 Main performance Max. rated total lifting capacity kg 32000 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 1132 Base boom m 11.1 Fully extended boom m 40.5 Fully extended boom+ jib m 49 Longitudinal outrigger span m 10 Lateral outrigger span m 10 Working speed Boom luffing time s 48 Boomfull extension time s 80 Max. swing speed r/min 0~2.6 Max. speed of main winch (single rope) (no load) m/min 145 Max. speed of aux. winch (single rope) (no load) m/min 88
Dimension
Unit
QY30V
Overall length
mm
12900
Overall width
2500
Overall height
3465
Weight
Total weight in travel
kg
31830
Front axle load
6990
Rear axle load
24840
Power
Engine model
WD615.50
Engine rated power
kW/(r/min)
206
Engine rated torque
N.m/(r/min)
1160/1300~1600
Travel
Max. travel speed
km/h
78
Min. turning diameter
m
11
Min. ground clearance
220
Approach angle
°
Departure angle
Max. grade ability
%
37
Fuel consumption for 100km
L
45
Main performance
Max. rated total lifting capacity
32000
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
1132
Base boom
11.1
Fully extended boom
40.5
Fully extended boom+ jib
49
Longitudinal outrigger span
10
Lateral outrigger span
Working speed
Boom luffing time
s
48
Boomfull extension time
80
Max. swing speed
r/min
0~2.6
Max. speed of main winch (single rope) (no load)
m/min
145
Max. speed of aux. winch (single rope) (no load)
88
