Quick Details Feature: Crawler Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: QUY70 Certification: ISO,CE Rated Loading Capacity: 70t Rated Lifting Moment: 1994.3kN.M Dimension: 11200*3300*3200mm Max. Lifting Load: 70t Max. Lifting Height: 60m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: White After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QUY70 Overall length mm 11200 Overall width mm 3300 Overall height mm 3200 Weight Total mass (with basic boom) t 61 Balance weight t Power Engine model Engine rated power kW/(r/min) 153/2200 Engine rated torque N.m/(r/min) 929/1300 Travel Max. travel speed km/h 0～1.35 Max. grade ability % 30 Mean ground pressure MPa 0.074 Main performance Max. rated total lifting capacity t 70 Max. lifting torque kN.m 1994.3 Base boom m 12 Fully extended boom m 57 Fully extended boom+ jib m 75 Boom elevating angle ° Working speed Max. swing speed r/min 0~2.4 Max. single rope hoist speed m/min 120 Max. single rope boom luffer speed m/min 45

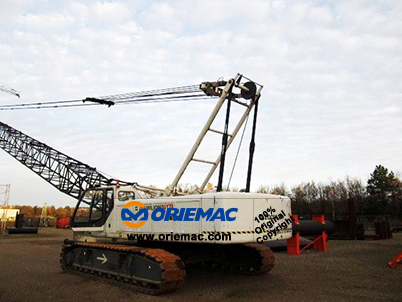

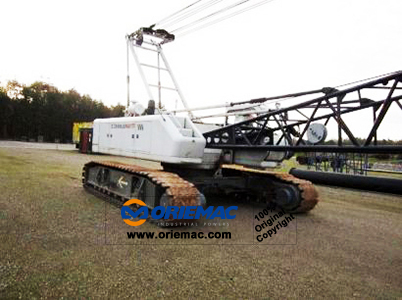

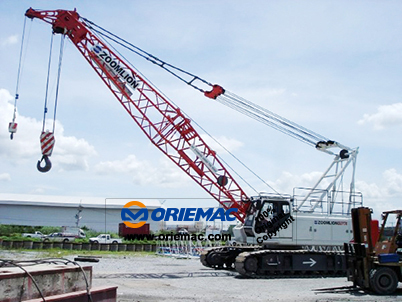

Feature: Crawler Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: QUY70
Certification: ISO,CE
Rated Loading Capacity: 70t
Rated Lifting Moment: 1994.3kN.M
Dimension: 11200*3300*3200mm
Max. Lifting Load: 70t
Max. Lifting Height: 60m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: White
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QUY70 Overall length mm 11200 Overall width mm 3300 Overall height mm 3200 Weight Total mass (with basic boom) t 61 Balance weight t Power Engine model Engine rated power kW/(r/min) 153/2200 Engine rated torque N.m/(r/min) 929/1300 Travel Max. travel speed km/h 0～1.35 Max. grade ability % 30 Mean ground pressure MPa 0.074 Main performance Max. rated total lifting capacity t 70 Max. lifting torque kN.m 1994.3 Base boom m 12 Fully extended boom m 57 Fully extended boom+ jib m 75 Boom elevating angle ° Working speed Max. swing speed r/min 0~2.4 Max. single rope hoist speed m/min 120 Max. single rope boom luffer speed m/min 45
Dimension
Unit
QUY70
Overall length
mm
11200
Overall width
3300
Overall height
3200
Weight
Total mass (with basic boom)
t
61
Balance weight
Power
Engine model
Engine rated power
kW/(r/min)
153/2200
Engine rated torque
N.m/(r/min)
929/1300
Travel
Max. travel speed
km/h
0～1.35
Max. grade ability
%
30
Mean ground pressure
MPa
0.074
Main performance
Max. rated total lifting capacity
70
Max. lifting torque
kN.m
1994.3
Base boom
m
12
Fully extended boom
57
Fully extended boom+ jib
75
Boom elevating angle
°
Working speed
Max. swing speed
r/min
0~2.4
Max. single rope hoist speed
m/min
120
Max. single rope boom luffer speed
45
