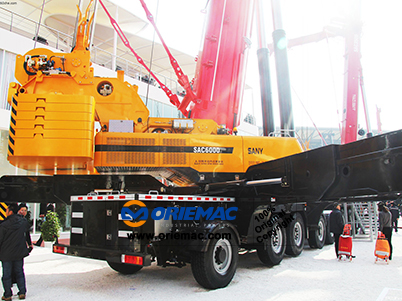

Quick Details Feature: All Terrain Crane Condition: New Application: Construction Brand Name: SANY Model Number: SAC6000 Certification: ISO,CE Rated Loading Capacity: 600t Rated Lifting Moment: kN.M Dimension: 22745×3000×4000mm Max. Lifting Load: 600t Max. Lifting Height: 70m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 10.8/10.8m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SAC6000 Overall length mm 22745 Overall width mm 3000 Overall height mm 4000 Weight Total weight in travel kg 96000 Front axle load kg Rear axle load kg Power Engine model OM906LA Engine rated power kW/(r/min) 205/2200 Engine rated torque N.m/(r/min) 1100/1400 Travel Max. travel speed km/h 75 Min. turning diameter m Min. ground clearance mm Approach angle ° 12 Departure angle ° 18 Max. grade ability % 37.4 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 600 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m Base boom m 15.2 Fully extended boom m 70 Fully extended boom+ jib m 112 Longitudinal outrigger span m 10.8 Lateral outrigger span m 10.8 Working speed Boom luffing time s ≥80 Boomfull extension time s ≥750;≥800 Max. swing speed r/min ≤1.0 Max. speed of main winch (single rope) (no load) m/min Max. speed of aux. winch (single rope) (no load) m/min
Feature: All Terrain Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SAC6000
Certification: ISO,CE
Rated Loading Capacity: 600t
Rated Lifting Moment: kN.M
Dimension: 22745×3000×4000mm
Max. Lifting Load: 600t
Max. Lifting Height: 70m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 10.8/10.8m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SAC6000 Overall length mm 22745 Overall width mm 3000 Overall height mm 4000 Weight Total weight in travel kg 96000 Front axle load kg Rear axle load kg Power Engine model OM906LA Engine rated power kW/(r/min) 205/2200 Engine rated torque N.m/(r/min) 1100/1400 Travel Max. travel speed km/h 75 Min. turning diameter m Min. ground clearance mm Approach angle ° 12 Departure angle ° 18 Max. grade ability % 37.4 Fuel consumption for 100km L Main performance Max. rated total lifting capacity t 600 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m Base boom m 15.2 Fully extended boom m 70 Fully extended boom+ jib m 112 Longitudinal outrigger span m 10.8 Lateral outrigger span m 10.8 Working speed Boom luffing time s ≥80 Boomfull extension time s ≥750;≥800 Max. swing speed r/min ≤1.0 Max. speed of main winch (single rope) (no load) m/min Max. speed of aux. winch (single rope) (no load) m/min
Dimension
Unit
SAC6000
Overall length
mm
22745
Overall width
3000
Overall height
4000
Weight
Total weight in travel
kg
96000
Front axle load
Rear axle load
Power
Engine model
OM906LA
Engine rated power
kW/(r/min)
205/2200
Engine rated torque
N.m/(r/min)
1100/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
Min. ground clearance
Approach angle
°
12
Departure angle
18
Max. grade ability
%
37.4
Fuel consumption for 100km
L
Main performance
Max. rated total lifting capacity
t
600
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
Base boom
15.2
Fully extended boom
70
Fully extended boom+ jib
112
Longitudinal outrigger span
10.8
Lateral outrigger span
Working speed
Boom luffing time
s
≥80
Boomfull extension time
≥750;≥800
Max. swing speed
r/min
≤1.0
Max. speed of main winch (single rope) (no load)
m/min
Max. speed of aux. winch (single rope) (no load)
