Quick Details Feature: All Terrain Crane Condition: New Application: Construction Brand Name: ZOOMLION Model Number: QAY180V Certification: ISO,CE Rated Loading Capacity: 180t Rated Lifting Moment: 6480kN.M Dimension: 16560×3000×3950mm Max. Lifting Load: 180t Max. Lifting Height: 62.6m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 8.8/8.8m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QAY180V Overall length mm 16560 Overall width mm 3000 Overall height mm 3950 Weight Total weight in travel kg 70585 Front axle load kg 11764 Rear axle load kg 11764 Power Engine model OM502LA Engine rated power kW/(r/min) 420/1800 Engine rated torque N.m/(r/min) 2700/1080 Travel Max. travel speed km/h 72 Min. turning diameter m 24 Min. ground clearance mm 305 Approach angle ° Departure angle ° Max. grade ability % 50 Fuel consumption for 100km L 85 Main performance Max. rated total lifting capacity t 180 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 6480 Base boom m 13.8 Fully extended boom m 61 Fully extended boom+ jib m 79 Longitudinal outrigger span m 8.8 Lateral outrigger span m 8.8 Working speed Boom luffing time s ≥80 Boomfull extension time s 600 Max. swing speed r/min ≤1.5 Max. speed of main winch (single rope) (no load) m/min 128 Max. speed of aux. winch (single rope) (no load) m/min 70

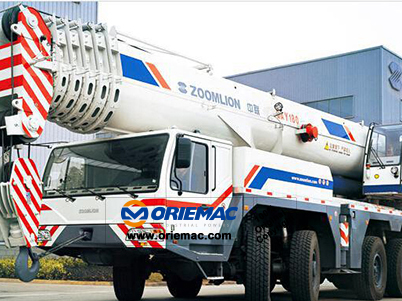

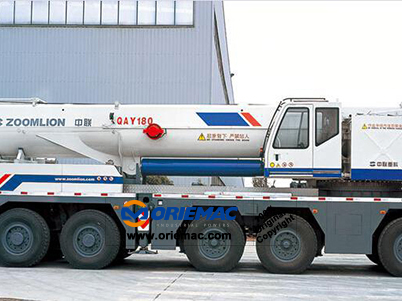

Feature: All Terrain Crane
Condition: New
Application: Construction
Brand Name: ZOOMLION
Model Number: QAY180V
Certification: ISO,CE
Rated Loading Capacity: 180t
Rated Lifting Moment: 6480kN.M
Dimension: 16560×3000×3950mm
Max. Lifting Load: 180t
Max. Lifting Height: 62.6m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 8.8/8.8m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QAY180V Overall length mm 16560 Overall width mm 3000 Overall height mm 3950 Weight Total weight in travel kg 70585 Front axle load kg 11764 Rear axle load kg 11764 Power Engine model OM502LA Engine rated power kW/(r/min) 420/1800 Engine rated torque N.m/(r/min) 2700/1080 Travel Max. travel speed km/h 72 Min. turning diameter m 24 Min. ground clearance mm 305 Approach angle ° Departure angle ° Max. grade ability % 50 Fuel consumption for 100km L 85 Main performance Max. rated total lifting capacity t 180 Min. rated working radius m Turning radius at turntable tail m Max. lifting torque kN.m 6480 Base boom m 13.8 Fully extended boom m 61 Fully extended boom+ jib m 79 Longitudinal outrigger span m 8.8 Lateral outrigger span m 8.8 Working speed Boom luffing time s ≥80 Boomfull extension time s 600 Max. swing speed r/min ≤1.5 Max. speed of main winch (single rope) (no load) m/min 128 Max. speed of aux. winch (single rope) (no load) m/min 70
Dimension
Unit
QAY180V
Overall length
mm
16560
Overall width
3000
Overall height
3950
Weight
Total weight in travel
kg
70585
Front axle load
11764
Rear axle load
Power
Engine model
OM502LA
Engine rated power
kW/(r/min)
420/1800
Engine rated torque
N.m/(r/min)
2700/1080
Travel
Max. travel speed
km/h
72
Min. turning diameter
m
24
Min. ground clearance
305
Approach angle
°
Departure angle
Max. grade ability
%
50
Fuel consumption for 100km
L
85
Main performance
Max. rated total lifting capacity
t
180
Min. rated working radius
Turning radius at turntable tail
Max. lifting torque
kN.m
6480
Base boom
13.8
Fully extended boom
61
Fully extended boom+ jib
79
Longitudinal outrigger span
8.8
Lateral outrigger span
Working speed
Boom luffing time
s
≥80
Boomfull extension time
600
Max. swing speed
r/min
≤1.5
Max. speed of main winch (single rope) (no load)
m/min
128
Max. speed of aux. winch (single rope) (no load)
70
