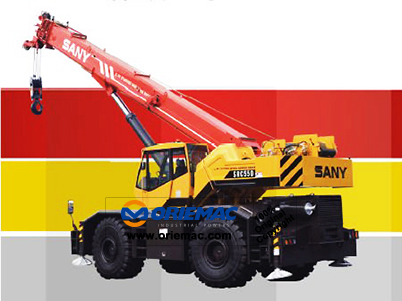

Quick Details Feature: Rough Terrain Crane Condition: New Application: Construction Brand Name: SANY Model Number: SRC550 Certification: ISO,CE Rated Loading Capacity: 55t Rated Lifting Moment: 1810kN.M Dimension: 13750×3300×3760mm Max. Lifting Load: 55t Max. Lifting Height: 35.8m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: 7.2/7.2m After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SRC550 Overall length mm 13750 Overall width mm 3300 Overall height mm 3760 Weight Total weight in travel kg 40800 Front axle load kg 21910 Rear axle load kg 18890 Power Engine model Cummins QSB6.7 Engine rated power kW/(r/min) 186/2500 Engine rated torque N.m/(r/min) 987/1500 Travel Max. travel speed km/h 40 Min. turning diameter m 13.4 Min. ground clearance mm 350 Approach angle ° 23 Departure angle ° 20 Max. grade ability % 75 Fuel consumption for 100km L 60 Main performance Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m Max. lifting torque kN.m 1810 Base boom m 11.25 Fully extended boom m 34.5 Fully extended boom+ jib m 50.9 Longitudinal outrigger span m 7.2 Lateral outrigger span m 7.2 Working speed Boom luffing time s 75 Boomfull extension time s 120 Max. swing speed r/min 2.6 Max. speed of main winch (single rope) (no load) m/min 150 Max. speed of aux. winch (single rope) (no load) m/min 150
Feature: Rough Terrain Crane
Condition: New
Application: Construction
Brand Name: SANY
Model Number: SRC550
Certification: ISO,CE
Rated Loading Capacity: 55t
Rated Lifting Moment: 1810kN.M
Dimension: 13750×3300×3760mm
Max. Lifting Load: 55t
Max. Lifting Height: 35.8m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span: 7.2/7.2m
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit SRC550 Overall length mm 13750 Overall width mm 3300 Overall height mm 3760 Weight Total weight in travel kg 40800 Front axle load kg 21910 Rear axle load kg 18890 Power Engine model Cummins QSB6.7 Engine rated power kW/(r/min) 186/2500 Engine rated torque N.m/(r/min) 987/1500 Travel Max. travel speed km/h 40 Min. turning diameter m 13.4 Min. ground clearance mm 350 Approach angle ° 23 Departure angle ° 20 Max. grade ability % 75 Fuel consumption for 100km L 60 Main performance Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m Max. lifting torque kN.m 1810 Base boom m 11.25 Fully extended boom m 34.5 Fully extended boom+ jib m 50.9 Longitudinal outrigger span m 7.2 Lateral outrigger span m 7.2 Working speed Boom luffing time s 75 Boomfull extension time s 120 Max. swing speed r/min 2.6 Max. speed of main winch (single rope) (no load) m/min 150 Max. speed of aux. winch (single rope) (no load) m/min 150
Dimension
Unit
SRC550
Overall length
mm
13750
Overall width
3300
Overall height
3760
Weight
Total weight in travel
kg
40800
Front axle load
21910
Rear axle load
18890
Power
Engine model
Cummins QSB6.7
Engine rated power
kW/(r/min)
186/2500
Engine rated torque
N.m/(r/min)
987/1500
Travel
Max. travel speed
km/h
40
Min. turning diameter
m
13.4
Min. ground clearance
350
Approach angle
°
23
Departure angle
20
Max. grade ability
%
75
Fuel consumption for 100km
L
60
Main performance
Max. rated total lifting capacity
t
55
Min. rated working radius
3
Turning radius at turntable tail
Max. lifting torque
kN.m
1810
Base boom
11.25
Fully extended boom
34.5
Fully extended boom+ jib
50.9
Longitudinal outrigger span
7.2
Lateral outrigger span
Working speed
Boom luffing time
s
Boomfull extension time
120
Max. swing speed
r/min
2.6
Max. speed of main winch (single rope) (no load)
m/min
150
Max. speed of aux. winch (single rope) (no load)
