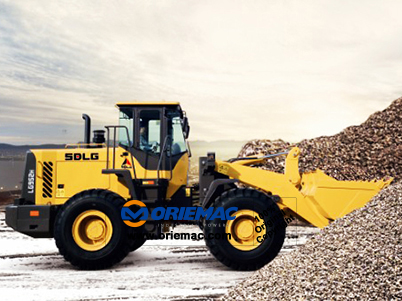

5.0ton Wheel Loader LG952H



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: SDLG

Model Number: LG952H

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 2.4~4.5m3

Dimension: 7912×3024×3349mm

Max. Lifting Load: 5.0t

Engine: WD10G220E23

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

LG952H

Overall length

mm

7912

Overall width

mm

3024

Overall height

mm>

3349

Weight





Total weight

kg

16400~16450

Power





Engine model



WD10G220E23

Engine rated power

kW

162

Engine rated speed

r/min

2000

Travel





Travel speed 1st (forward/backward)

km/h

0~13/0~17

Travel?speed 2st (forward/backward)

km/h

0~38

Main performance





Rated load

t

5.0

Bucket capacity

m3

2.4~4.5

Dumping clearance

m

3.07~3.37

Dumping reach

m

1.16~1.19

Max. breakout force

KN

≥150

Max. traction force

KN

160

Articulation angle

0

41

Gradeability

0

28

Wheel base

m

2.84

Tread

m

2.25

Tyre size

m


Min. ground clearance

m

0.534

Min. turning radius

m

5.765

Working speed





Hydraulic cycle time – raise

s


Total hydraulic cycle time

s

10
