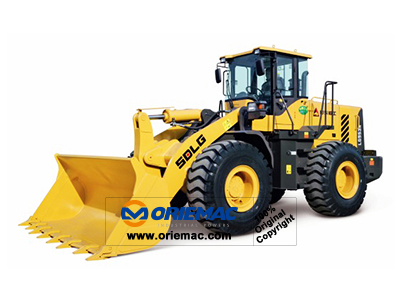

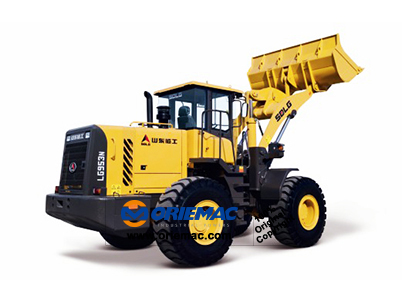

5.0ton Wheel Loader LG953N



Quick Details

Feature: Wheel Loader

Condition: New

Application: Construction

Brand Name: SDLG

Model Number: LG953N

Certification: ISO,CE

Rated Loading Capacity: 5.0t

Bucket Capacity: 2.2~4.5m3

Dimension: 7794×3024×3423mm

Max. Lifting Load: 5.0t

Engine: WD10G220E23

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

LG953N

Overall length

mm

7794

Overall width

mm

3024

Overall height

mm>

3423

Weight





Total weight

kg

16600~17000

Power





Engine model



WD10G220E23

Engine rated power

kW

162

Engine rated speed

r/min

2000

Travel





Travel speed 1st (forward/backward)

km/h

0~13/0~17

Travel?speed 2st (forward/backward)

km/h

0~38

Main performance





Rated load

t

5.0

Bucket capacity

m3

2.2~4.5

Dumping clearance

m

3.05~3.6

Dumping reach

m

1.08~1.19

Max. breakout force

KN

≥185

Max. traction force

KN

160

Articulation angle

0

45

Gradeability

0

29

Wheel base

m

2.92

Tread

m

2.25

Tyre size

m



Min. ground clearance

m

0.534

Min. turning radius

m

6.201

Working speed





Hydraulic cycle time – raise

s



Total hydraulic cycle time

s

10
