Quick Details Feature: Wheel Loader Condition: New Application: Construction Brand Name: CHENGGONG Model Number: ZL30B-II Certification: ISO,CE Rated Loading Capacity: 3.0t Bucket Capacity: 1.6-2.5m3 Dimension: 7115*2510*3100mm Max. Lifting Load: 3.0t Engine: 6110/125G-18 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit ZL30B-II Overall length mm 7115 Overall width mm 2510 Overall height mm 3100 Weight Total weight kg 10600 Power Engine model 6110/125G-18 Engine rated power kW 86/92 Engine rated speed r/min 2000 Travel Max. travel speed km/h 30 Main performance Rated load t 3.0 Bucket capacity m3 1.6-2.5 Dumping clearance m 2.965 Dumping reach m 1.04 Max. breakout force KN 102 Max. traction force KN Steering angle 0 Gradeability 0 Wheel base m 2.57 Tread m Tyre size m Min. ground clearance m Min. turning radius m 5.387 Working speed Boom cycle time – raise s Total hydraulic cycle time s 10.4

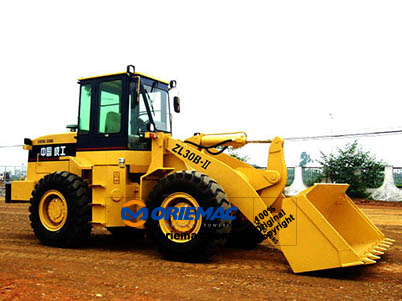

Feature: Wheel Loader
Condition: New
Application: Construction
Brand Name: CHENGGONG
Model Number: ZL30B-II
Certification: ISO,CE
Rated Loading Capacity: 3.0t
Bucket Capacity: 1.6-2.5m3
Dimension: 7115*2510*3100mm
Max. Lifting Load: 3.0t
Engine: 6110/125G-18
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit ZL30B-II Overall length mm 7115 Overall width mm 2510 Overall height mm 3100 Weight Total weight kg 10600 Power Engine model 6110/125G-18 Engine rated power kW 86/92 Engine rated speed r/min 2000 Travel Max. travel speed km/h 30 Main performance Rated load t 3.0 Bucket capacity m3 1.6-2.5 Dumping clearance m 2.965 Dumping reach m 1.04 Max. breakout force KN 102 Max. traction force KN Steering angle 0 Gradeability 0 Wheel base m 2.57 Tread m Tyre size m Min. ground clearance m Min. turning radius m 5.387 Working speed Boom cycle time – raise s Total hydraulic cycle time s 10.4
Dimension
Unit
ZL30B-II
Overall length
mm
7115
Overall width
2510
Overall height
3100
Weight
Total weight
kg
10600
Power
Engine model
6110/125G-18
Engine rated power
kW
86/92
Engine rated speed
r/min
2000
Travel
Max. travel speed
km/h
30
Main performance
Rated load
t
3.0
Bucket capacity
m3
1.6-2.5
Dumping clearance
m
2.965
Dumping reach
1.04
Max. breakout force
KN
102
Max. traction force
Steering angle
0
Gradeability
Wheel base
2.57
Tread
Tyre size
Min. ground clearance
Min. turning radius
5.387
Working speed
Boom cycle time – raise
s
Total hydraulic cycle time
10.4
