Quick Details
|

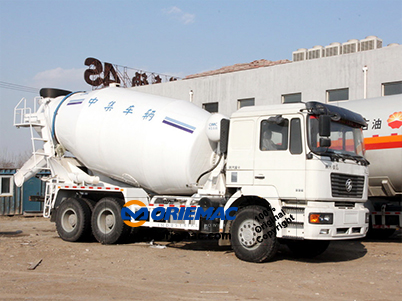

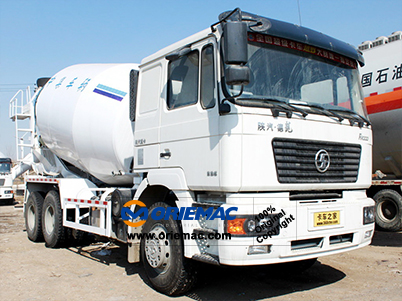

Feature: Concrete Mixer Truck
|
Condition: New
|
Application: Construction
|
|
Brand Name: SHACMAN
|
Model Number: F2000 DELONG
|
Certification: ISO,CE
|
|
Drive type: 6*4
|
Operating weight: 25000kg
|
Loading capacity: 10m3
|
|
Tyre: 12.00~20.00
|
Engine rated power: 336kw
|
Place of Origin: Shaanxi, China (Mainland)
|
|
Warranty: 1 year
|
Color: Optional Colour
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
30 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
F2000
|
|
Overall length
|
mm
|
9235
|
|
Overall width
|
mm
|
2500
|
|
Overall height
|
mm
|
3900
|
|
Weight
|
|
|
|
Kerb mass
|
kg
|
12700
|
|
Rated loading capacity
|
kg
|
12105
|
|
Total mass
|
kg
|
25000
|
|
Chassis parameters
|
|
|
|
Chassis model
|
|
SX5255GJBJR364
|
|
Engine model
|
|
WD12.336 EURO II
|
|
Engine rated power
|
kW
|
336
|
|
Rated output power
|
kW/hp
|
247/336
|
|
Main performance
|
|
|
|
Driving type
|
|
6*4
|
|
Max. speed
|
km/h
|
77
|
|
Min. turning diameter
|
m
|
19
|
|
Min. ground clearance
|
mm
|
314
|
|
Max. gradeability
|
%
|
30
|
|
Wheel base
|
mm
|
3775+1400
|
|
Overhang (front/rear)
|
mm
|
1525/1775
|
|
Torque
|
N.m rpm
|
1350/1300-1600
|
|
Displacement
|
L
|
11.596
|
|
Fuel tank capacity
|
L
|
380
|
|
Tyre
|
pc
|
12.00-20 (10+1)
|
|
Loading capacity
|
m3
|
10
|
|
Clutch
|
|
φ430 diaphragm spring
|
|
Gearbox/Transmission
|
|
12JS160T, 12 forward, 2re verse
|
|
Front axle
|
|
MAN 7.5T front axle
|
|
Drive axle
|
|
STR 13T*2 axle ratio 5.73
|
|
Steering
|
|
ZF technology
|
