Quick Details
|

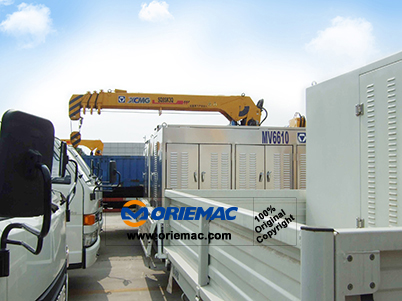

Feature: Truck Mounted Crane
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: SQ8SK3Q
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 8t
|
Rated Lifting Moment: 196kN.M
|
Span: 11m
|
|
Max. Lifting Load: 8t
|
Max. Lifting Height: 13.5m
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Color: Yellow
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
20 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Main performance
|
Unit
|
SQ8SK3Q
|
|
Crane Weight
|
kg
|
3315
|
|
Max. rated total lifting capacity
|
kg
|
8000
|
|
Max. lifting torque
|
kN.m
|
196
|
|
Recommend Power
|
kw
|
27
|
|
Max Oil Flow of Hydraulic System
|
L/min
|
55
|
|
Max Pressure of Hydraulic System
|
MPa
|
27
|
|
Oil Tank Capacity
|
L
|
160
|
|
Rotation Angle
|
|
360°All Rotation
|
|
Installation Space
|
mm
|
1200
|
|
Choice of Chassis
|
|
CA1176PK2L9T3A95, EQ1252GFJ, etc.
|
|
Lifting capability diagram
|
|
|
|
Working radius
|
m
|
2.5/4.5/7/9/11.5
|
|
Lifting capacity
|
kg
|
8000/4400/2500/1750/1100
|
