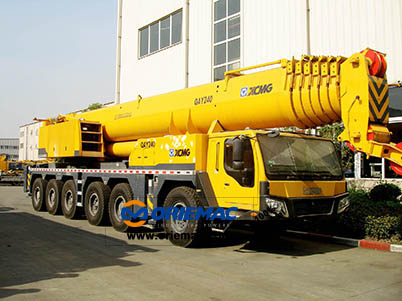

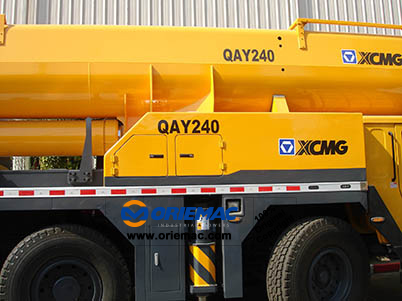

Quick Details Feature: All Terrain Crane Condition: New Application: Construction Brand Name: XCMG Model Number: QAY240 Certification: ISO,CE Rated Loading Capacity: 240t Rated Lifting Moment: 7797kN.M Dimension: 15918×3080×4000mm Max. Lifting Load: 240t Max. Lifting Height: 67m Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Span: After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit QAY240 Overall length mm 15918 Overall width mm 3080 Overall height mm 4000 Weight Total weight in travel kg 72000 Front axle load kg Rear axle load kg Power Engine model OM502LA Engine rated power kW/(r/min) 420/1800 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 71 Min. turning diameter m 24 Min. ground clearance mm 278 Approach angle ° 25 Departure angle ° 17.9 Max. grade ability % 48 Fuel consumption for 100km L 80 Main performance Max. rated total lifting capacity t 240 Min. rated working radius m 3 Turning radius at turntable tail m 4.80 Max. lifting torque kN.m 7797 Base boom m 13.2 Fully extended boom m 67 Fully extended boom+ jib m 79 Longitudinal outrigger span m Lateral outrigger span m Working speed Boom luffing time s 65 Boomfull extension time s 650 Max. swing speed r/min 1.6 Max. speed of main winch (single rope) (no load) m/min 115 Max. speed of aux. winch (single rope) (no load) m/min 118
Feature: All Terrain Crane
Condition: New
Application: Construction
Brand Name: XCMG
Model Number: QAY240
Certification: ISO,CE
Rated Loading Capacity: 240t
Rated Lifting Moment: 7797kN.M
Dimension: 15918×3080×4000mm
Max. Lifting Load: 240t
Max. Lifting Height: 67m
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Span:
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit QAY240 Overall length mm 15918 Overall width mm 3080 Overall height mm 4000 Weight Total weight in travel kg 72000 Front axle load kg Rear axle load kg Power Engine model OM502LA Engine rated power kW/(r/min) 420/1800 Engine rated torque N.m/(r/min) Travel Max. travel speed km/h 71 Min. turning diameter m 24 Min. ground clearance mm 278 Approach angle ° 25 Departure angle ° 17.9 Max. grade ability % 48 Fuel consumption for 100km L 80 Main performance Max. rated total lifting capacity t 240 Min. rated working radius m 3 Turning radius at turntable tail m 4.80 Max. lifting torque kN.m 7797 Base boom m 13.2 Fully extended boom m 67 Fully extended boom+ jib m 79 Longitudinal outrigger span m Lateral outrigger span m Working speed Boom luffing time s 65 Boomfull extension time s 650 Max. swing speed r/min 1.6 Max. speed of main winch (single rope) (no load) m/min 115 Max. speed of aux. winch (single rope) (no load) m/min 118
Dimension
Unit
QAY240
Overall length
mm
15918
Overall width
3080
Overall height
4000
Weight
Total weight in travel
kg
72000
Front axle load
Rear axle load
Power
Engine model
OM502LA
Engine rated power
kW/(r/min)
420/1800
Engine rated torque
N.m/(r/min)
Travel
Max. travel speed
km/h
71
Min. turning diameter
m
24
Min. ground clearance
278
Approach angle
°
25
Departure angle
17.9
Max. grade ability
%
48
Fuel consumption for 100km
L
80
Main performance
Max. rated total lifting capacity
t
240
Min. rated working radius
3
Turning radius at turntable tail
4.80
Max. lifting torque
kN.m
7797
Base boom
13.2
Fully extended boom
67
Fully extended boom+ jib
79
Longitudinal outrigger span
Lateral outrigger span
Working speed
Boom luffing time
s
65
Boomfull extension time
650
Max. swing speed
r/min
1.6
Max. speed of main winch (single rope) (no load)
m/min
115
Max. speed of aux. winch (single rope) (no load)
118
