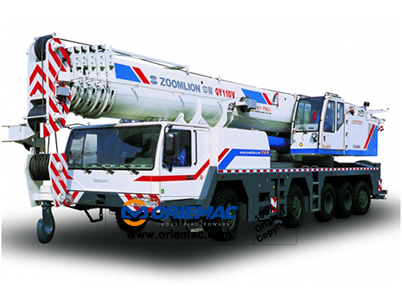

110ton Truck Crane QY110V



Quick Details

Feature: Truck Crane

Condition: New

Application: Construction

Brand Name: ZOOMLION

Model Number: QY110V

Certification: ISO,CE

Rated Loading Capacity: 110t

Rated Lifting Moment: 4400kN.M

Dimension: 14690×3000×3890mm

Max. Lifting Load: 110t

Max. Lifting Height: 85m

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: white

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

QY110V

Overall length

mm

14600

Overall width

mm

2800

Overall height

mm

3800

Weight





Total weight in travel

kg

54900

Front axle load

kg

19900

Rear axle load

kg

35000

Power





Engine model



WP12.430N

Engine rated power

kW/(r/min)

316/1900

Engine rated torque

N.m/(r/min)

2060/1000-1400

Travel





Max. travel speed

km/h

78

Min. turning diameter

m

23

Min. ground clearance

mm

280

Approach angle

°


Departure angle

°


Max. grade ability

%

40

Fuel consumption for 100km

L

75

Main performance





Max. rated total lifting capacity

t

110

Min. rated working radius

m

Turning radius at turntable tail

m


Max. lifting torque

kN.m

4400

Base boom

m


Fully extended boom

m

58.5

Fully extended boom+ jib

m

77/85

Longitudinal outrigger span

m

7.67

Lateral outrigger span

m

7.8/5.3

Working speed





Boom luffing time

s

≥80

Boomfull extension time

s

≥600

Max. swing speed

r/min

≤1.5

Max. speed of main winch (single rope) (no load)

m/min

115

Max. speed of aux. winch (single rope) (no load)

m/min

70
