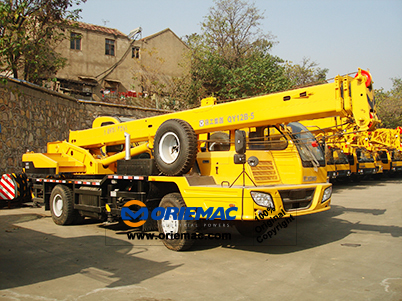

12ton Truck Crane QY12B.5
Quick Details
|
Feature: Truck Crane
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: QY12B.5
|
Certification: ISO,CE
|
|
Rated Loading Capacity: 12t
|
Rated Lifting Moment: 428kN.M
|
Dimension: 10200*2500*3200 mm
|
|
Max. Lifting Load: 12t
|
Max. Lifting Height: 20.8m
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Span: 4.1m
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
|
1. Well-equipped safety devices
2. Simple structure
3. light weight and good mobility.
4. The whole vehicle conforms to 46 standards of China National Compulsory Inspection. Marker lamps are installed at the front, middle and rear. Side protection fenders are fitted for the vehicle.
5. Adoption of Euro compliant D6114ZLQ5B or WD415.21 engine.
6. A load weighing device equipped in operator's cab can display load lifting capacity and give a warning when overload occurs, ensuring the safety in lifting operation.
7. 3-section main telescopic boom and single cylinder for front support elevating.
8. Two-pump flow can be combined for the winch to improve working efficiency.
9. Jib is available for option.
10. Well-equipped safety devices such as relief valve, hydraulic lock, hoist limit switch, working radius indicator and stabilizer.
11. Double H-shaped outriggers operated from both sides of the chassis are used for support and leveling of the vehicle.
12. Simple structure, light weight and good mobility.
|
Technical Parameters
|
Dimension
|
Unit
|
QY12B.5
|
|
Overall length
|
mm
|
10200
|
|
Overall width
|
mm
|
2500
|
|
Overall height
|
mm
|
3200
|
|
Weight
|
|
|
|
Total weight in travel
|
kg
|
16000
|
|
Front axle load
|
kg
|
6000
|
|
Rear axle load
|
kg
|
10000
|
|
Power
|
|
|
|
Engine model
|
|
6C215, WD415.21, SC8DK230Q3
|
|
Engine rated power
|
kW/(r/min)
|
155/2200, 158/2200, 170/2200
|
|
Engine rated torque
|
N.m/(r/min)
|
830/1400, 820/1400, 790/1400
|
|
Travel
|
|
|
|
Max. travel speed
|
km/h
|
68.75
|
|
Min. turning diameter
|
m
|
18000
|
|
Min. ground clearance
|
mm
|
260
|
|
Approach angle
|
°
|
21
|
|
Departure angle
|
°
|
10
|
|
Max. grade ability
|
%
|
≥26, ≥28
|
|
Fuel consumption for 100km
|
L
|
30, 40
|
|
Main performance
|
|
|
|
Max. rated total lifting capacity
|
t
|
12
|
|
Min. rated working radius
|
m
|
3
|
|
Turning radius at turntable tail
|
m
|
2.6
|
|
Max. lifting torque
|
kN.m
|
428
|
|
Base boom
|
m
|
9.3
|
|
Fully extended boom
|
m
|
23
|
|
Fully extended boom+ jib
|
m
|
29.4
|
|
Longitudinal outrigger span
|
m
|
4.1
|
|
Lateral outrigger span
|
m
|
4.9
|
|
Working speed
|
|
|
|
Boom luffing time
|
s
|
50
|
|
Boomfull extension time
|
s
|
75
|
|
Max. swing speed
|
r/min
|
2.6
|
|
Max. speed of main winch (single rope) (no load)
|
m/min
|
110
|
|
