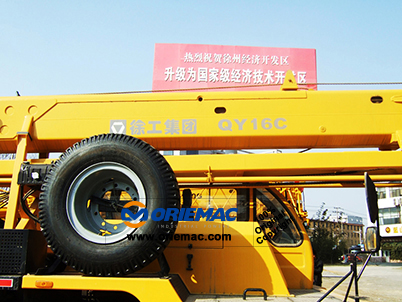

16.0ton Truck Crane QY16C

Quick Details

Feature: Truck Crane	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: QY16C	Certification: ISO,CE
Rated Loading Capacity: 16t	Rated Lifting Moment: 711kN.M	Dimension: 11990*2500*3350 mm
Max. Lifting Load: 16t	Max. Lifting Height: 30.8m	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Span: 5.4m	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	10 days

---

Main Features

1. QY16C Truck Crane uses self made truck crane chassis with Shanghai D6114 engine or Hangzhou WD415.21 engine. 2. A gravity-lowering device fitted in the winch improves working efficiency. 3. Constant closed external meshing brake makes operation safe and reliable. 4. Newly designed 3-section all-round hexagonal boom profile with single cylinder plus wire ropes for telescoping increase load lifting capacity.

Technical Parameters

Dimension	Unit	QY16C
Overall length	mm	11990
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	22900
Front axle load	kg	5240
Rear axle load	kg	17660
Power
Engine rated output	kW/(r/min)	158/2200
Engine rated torque	N.m/(r/min)	790/1400
Engine rated speed	r/min	2200
Travel
Max. travel speed	km/h	70
Max. stable travel speed	km/h	4
Min. turning diameter	m	20
Min. turning diameter at boom tip	m	23
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	10
Max. grade ability	%	24
Fuel consumption for 100km	L	35
Braking distance (at 30km/h with full load)	m	9.5
