Quick Details Feature: Telescopic Handler Condition: New Application: Construction Brand Name: ROADER Model Number: LTH50100H Certification: ISO,CE Rated Loading Capacity: 5000kg Engine: Cummins 4BTAA3.9-C125 Dimension: 8000*2450*2760mm Max. Lifting Height: 10000mm Rated power: 126HP/93 Drive mode: 4 wheel drive Warranty: 1 year Total Weight: 12.5ton After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit LTH50100H Overall length mm 8000 Overall width mm 2450 Overall height mm 2760 Weight Total weight in travel kg 12500 Power Engine model Cummins 4BTAA3.9-C125 Engine rated power kW 126HP/93 Main performance Max. forward reach at horizonal level mm 6840 Turning radius - wheel outside mm 7570 Min. ground clearance mm 450 Wheel base mm 3100 Tread mm 2005 Lift capacity at max. height kg 3000 Lift capacity at max. reach kg 800 Max. ifting height mm 10000 Capacity of the fuel tank L 150 Reach at max. lift height L 165

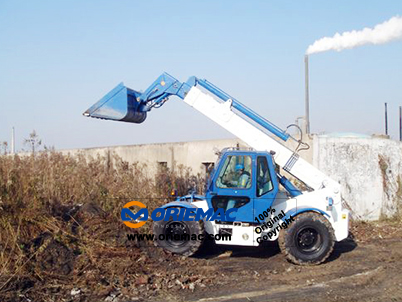

Feature: Telescopic Handler
Condition: New
Application: Construction
Brand Name: ROADER
Model Number: LTH50100H
Certification: ISO,CE
Rated Loading Capacity: 5000kg
Engine: Cummins 4BTAA3.9-C125
Dimension: 8000*2450*2760mm
Max. Lifting Height: 10000mm
Rated power: 126HP/93
Drive mode: 4 wheel drive
Warranty: 1 year
Total Weight: 12.5ton
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit LTH50100H Overall length mm 8000 Overall width mm 2450 Overall height mm 2760 Weight Total weight in travel kg 12500 Power Engine model Cummins 4BTAA3.9-C125 Engine rated power kW 126HP/93 Main performance Max. forward reach at horizonal level mm 6840 Turning radius - wheel outside mm 7570 Min. ground clearance mm 450 Wheel base mm 3100 Tread mm 2005 Lift capacity at max. height kg 3000 Lift capacity at max. reach kg 800 Max. ifting height mm 10000 Capacity of the fuel tank L 150 Reach at max. lift height L 165
Dimension
Unit
LTH50100H
Overall length
mm
8000
Overall width
2450
Overall height
2760
Weight
Total weight in travel
kg
12500
Power
Engine model
Cummins 4BTAA3.9-C125
Engine rated power
kW
126HP/93
Main performance
Max. forward reach at horizonal level
6840
Turning radius - wheel outside
7570
Min. ground clearance
450
Wheel base
3100
Tread
2005
Lift capacity at max. height
3000
Lift capacity at max. reach
800
Max. ifting height
10000
Capacity of the fuel tank
L
150
Reach at max. lift height
165
