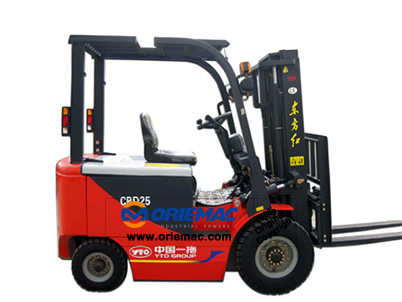

Quick Details Feature: Forklift Condition: New Application: Construction Brand Name: YTO Model Number: CPD25 Certification: ISO,CE Power type: Battery Lift height: 3m Dimension: 2430*1150*2150mm Rated capacity: 2.5t Lift speed (with load): 260mm/s Place of Origin: Henan, China (Mainland) Warranty: 1 year Transmission type: Hydraulic After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 10 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit CPD25 Overall length mm 2430 Overall width mm 1150 Overall height mm 2150 Weight Total weight in travel kg 4240 Power Driving motor XQ-6.3-1T Rated power kW 6.3 Rated rotation r/min 1200 Travel Travel brake Hydraulic-Foot pedal Parking brake Mechanical-Hand level Lift speed (with/without load) mm/s 260 Lower speed (with/without load) mm/s ＜600 / ＞300 Travel speed (with/without load) km/h 12 Main performance Max. gradeability (with load) % 10 Rated capacity kg 500 Load center mm 3000 Lift height mm 1500 Mast tilt angle (forward/backward) Deg 6/12 Wheel base mm 970/950 Tread (front/rear) mm 500 Min. turning radius mm 2100
Feature: Forklift
Condition: New
Application: Construction
Brand Name: YTO
Model Number: CPD25
Certification: ISO,CE
Power type: Battery
Lift height: 3m
Dimension: 2430*1150*2150mm
Rated capacity: 2.5t
Lift speed (with load): 260mm/s
Place of Origin: Henan, China (Mainland)
Warranty: 1 year
Transmission type: Hydraulic
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
10 days
Dimension Unit CPD25 Overall length mm 2430 Overall width mm 1150 Overall height mm 2150 Weight Total weight in travel kg 4240 Power Driving motor XQ-6.3-1T Rated power kW 6.3 Rated rotation r/min 1200 Travel Travel brake Hydraulic-Foot pedal Parking brake Mechanical-Hand level Lift speed (with/without load) mm/s 260 Lower speed (with/without load) mm/s ＜600 / ＞300 Travel speed (with/without load) km/h 12 Main performance Max. gradeability (with load) % 10 Rated capacity kg 500 Load center mm 3000 Lift height mm 1500 Mast tilt angle (forward/backward) Deg 6/12 Wheel base mm 970/950 Tread (front/rear) mm 500 Min. turning radius mm 2100
Dimension
Unit
CPD25
Overall length
mm
2430
Overall width
1150
Overall height
2150
Weight
Total weight in travel
kg
4240
Power
Driving motor
XQ-6.3-1T
Rated power
kW
6.3
Rated rotation
r/min
1200
Travel
Travel brake
Hydraulic-Foot pedal
Parking brake
Mechanical-Hand level
Lift speed (with/without load)
mm/s
260
Lower speed (with/without load)
＜600 / ＞300
Travel speed (with/without load)
km/h
12
Main performance
Max. gradeability (with load)
%
10
Rated capacity
500
Load center
3000
Lift height
1500
Mast tilt angle (forward/backward)
Deg
6/12
Wheel base
970/950
Tread (front/rear)
Min. turning radius
2100
