Quick Details
|

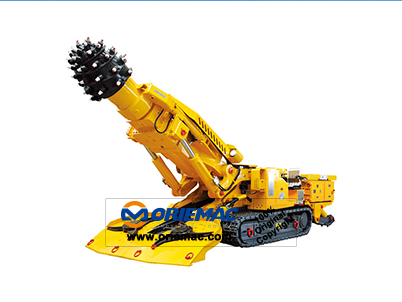

Feature: Roadheader
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: EBZ160
|
Certification: ISO,CE
|
|
Total weight: 48t
|
Rated power: 160kw
|
Dimension: 9300*2900*1600mm
|
|
Oil pump power: 75kw
|
Cutting hardness: ≤70MPa
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Cutting head speed: 48/24 r/min
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
EBZ160
|
|
Overall length
|
mm
|
9300
|
|
Overall width
|
mm
|
2900
|
|
Overall height
|
mm
|
1600
|
|
Weight
|
|
|
|
Total weight in travel
|
kg
|
48000
|
|
Power
|
|
|
|
Engine rated power
|
kW
|
160/80
|
|
Oil pump power
|
kW
|
75
|
|
Travel
|
|
|
|
Working speed
|
m/min
|
0~6
|
|
Main performance
|
|
|
|
Grade ability
|
0
|
±16
|
|
Gantry height
|
mm
|
400
|
|
Underground water pressure
|
Mpa
|
3~8
|
|
Fuel Tank capacity
|
L
|
500
|
|
Ground Pressure
|
Mpa
|
0.14
|
|
Cutting hardness
|
Mpa
|
≤70
|
|
Cutting head speed
|
r/min
|
48/24
|
|
Star wheel speed
|
r/min
|
33
|
|
Load capacity
|
m/min
|
4.2
|
|
First transport aircraft speed
|
m/min
|
61
|
|
Undercover depth
|
mm
|
216
|
|
Ground clearance
|
mm
|
250
|
