Quick Details
|

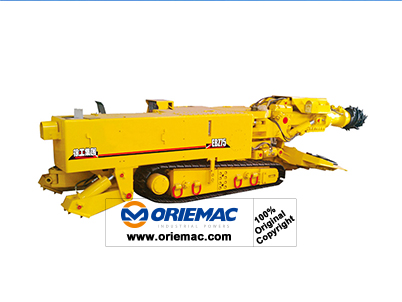

Feature: Roadheader
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: EBZ75
|
Certification: ISO,CE
|
|
Total weight: 23t
|
Rated power: 160kw
|
Dimension: 8040*2500*1720mm
|
|
Dinting depth: 175mm
|
Total power: 130KW
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Ground clearance: 170mm
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
EBZ75
|
|
Overall length
|
mm
|
8040
|
|
Overall width
|
mm
|
2500
|
|
Overall height
|
mm
|
1720
|
|
Weight
|
|
|
|
Total weight in travel
|
kg
|
23000
|
|
Power
|
|
|
|
Engine rated power
|
kW
|
130
|
|
Travel
|
|
|
|
Travel speed
|
m/min
|
3.3/7
|
|
Main performance
|
|
|
|
Gantry height
|
mm
|
300
|
|
Ground Pressure
|
Mpa
|
0.14
|
|
Crawler width
|
mm
|
400
|
|
Outside crawler width
|
mm
|
1700
|
|
Maximum dimensions of non-removable parts
|
mm
|
2065*960*615
|
|
Grade ability
|
0
|
±16
|
|
Cutting motor power
|
kW
|
75
|
|
Pump station motor power
|
kW
|
55
|
|
Supply voltage
|
|
AC660/1140V
|
|
Power frequency
|
Hz
|
50
|
|
Rotating speed of cutting head
|
r/min
|
50
|
|
Dinting depth
|
mm
|
175
|
