Quick Details
|

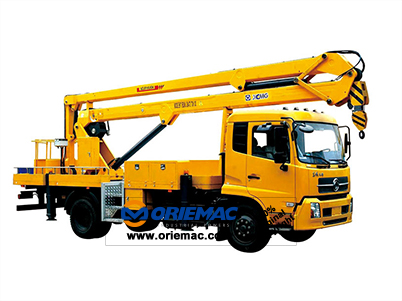

Feature: Aerial Working Platform
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: XZJ5110JGK
|
Certification: ISO,CE
|
|
Max.Operating Radius: 10m
|
Model of Chassis: DFL1120B2
|
Dimension: 9200*2460*3850mm
|
|
Rated Load of Platform: 320kg
|
Slewing Angle: ±3600
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Max. Operating Height: 21m
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
XZJ5110JGK
|
|
Overall length
|
mm
|
9200
|
|
Overall width
|
mm
|
2460
|
|
Overall height
|
mm
|
3850
|
|
Weight
|
|
|
|
Rated Loader of Platform
|
kg
|
320
|
|
Power
|
|
|
|
Engine model
|
|
ISDe18030, ISDe18530, ISDe16030
|
|
Engine rated power
|
kW
|
132, 136, 118
|
|
Main performance
|
|
|
|
Max. operating height
|
m
|
21
|
|
Max. operating radius
|
m
|
10
|
|
Rated load of Platform
|
kg
|
320
|
|
Slewing angle
|
0
|
±360
|
|
Max operating radius on maximum operating height
|
m
|
3.4
|
|
Max operating height on maximum operating radius
|
m
|
11.9
|
|
Max lifting capacity
|
kg
|
5000
|
|
Max lifting height
|
m
|
13.2
|
|
Passengers
|
|
3
|
