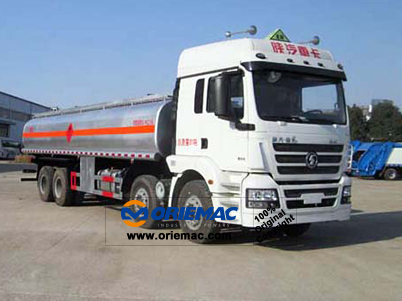

8*4 Fuel Tanker Truck SX5317GYYNM456



Quick Details

Feature: Fuel Tanker Truck

Condition: New

Application: Construction

Brand Name: SHACMAN

Model Number: SX5317GYYNM456

Certification: ISO,CE

Total Weight: 25t

Rated power: 290hp

Dimension: 8665*2495*2880mm

Wheel base: 4500mm

Fuel tank capacity: 300L

Place of Origin: Shaanxi, China (Mainland)

Warranty: 1 year

Drive type: 8*4

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

10 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

SX5317GYYNM456

Overall length

mm

8665

Overall width

mm

2495

Overall height

mm

2880

Weight





Total weight

kg

25000

Power





Engine model



WP10.290E32

Engine rated power

HP

290

Engine capacity

L

9.726

Main performance





Drive type



8*4

Max. travel speed

km/h

90

Approach angle

0

16

Departure angle

0

70

Wheel base

mm

4500

Tyre



12.00R20 radial tires

Specific fuel consumption

g/kW.h

≤193

Bore/Stroke

mm

126/130

Fuel tank capacity

L

300

Fuel consumpyion

L/100km

32

Gear box



MAN F3000, Lengthened hig roof

Clutch



Φ430 Diaphragm type

Auxiliary brake



WEVB

Spring



9/12,4/12
