Quick Details
|

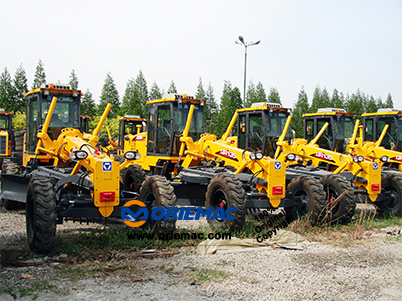

Feature: Motor Grader
|
Condition: New
|
Application: Construction
|
|
Brand Name: XCMG
|
Model Number: GR135
|
Certification: ISO,CE
|
|
Rated Power: 100kw
|
Rated Tractive force: 61.3KN
|
Dimension: 8015*2380*3050mm
|
|
Operating Weight: 11t
|
Max. Gradeability: 30%
|
Place of Origin: Jiangsu, China (Mainland)
|
|
Warranty: 1 year
|
Maximum depth of cutting: 515mm
|
After-sales Service Provided: Engineers available to service machinery overseas
|
Packaging & Delivery
|
Packaging Details:
|
Nude package Shipped by Ro-Ro or Bulk shipment
|
|
Delivery Detail:
|
10 days
|
Main Features
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
|
Technical Parameters
|
Dimension
|
Unit
|
GR135
|
|
Overall length
|
mm
|
8015
|
|
Overall width
|
mm
|
2380
|
|
Overall height
|
mm
|
3050
|
|
Weight
|
|
|
|
Total weight in travel
|
kg
|
11000
|
|
Power
|
|
|
|
Engine model
|
|
6BT5.9
|
|
Engine rated power
|
kW/(r/min)
|
100/2200
|
|
Rated tractive force
|
KN
|
61.3
|
|
Travel
|
|
|
|
Max. travel speed
|
km/h
|
42
|
|
Travel speed (forward)
|
km/h
|
5/8/13/20/30/42
|
|
Travel speed (reverse)
|
km/h
|
5/13/30
|
|
Main performance
|
|
|
|
Min. turning diameter
|
m
|
6.6
|
|
Max. oscillation angle of balance box
|
0
|
16
|
|
Max. steering angle of front wheels
|
0
|
±49
|
|
Frame articulation angle
|
0
|
±17
|
|
Max. oscillation angle of front axle
|
0
|
±15
|
|
Max. Lift above ground
|
mm
|
410
|
|
Max. depth of cutting
|
mm
|
515
|
|
Max. blade position angle
|
0
|
90
|
|
Blade cutting angle
|
0
|
54-90
|
|
Circle reversing rotation
|
0
|
360
|
|
Moldboard width * height
|
mm
|
3710*610
|
