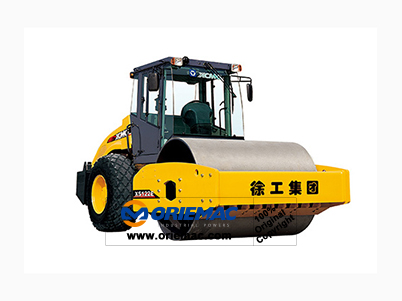

12ton Road Roller XS122E



Quick Details

Feature: Road Roller

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: XS122E

Certification: ISO,CE

Operation Weight: 12t

Static Linear Pressure: 313N/cm

Dimension: 5970*2300*3150mm

Travel Speed: 0~11km/h

Vibration Frequency: 30/35Hz

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Theoretical Amplitude: 1.8/0.9mm

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

XS122E

Overall length

mm

5970

Overall width

mm

2300

Overall height

mm

3150

Weight





Total weight in travel

kg

12000

Load on front drum

kg

6800

Load on rear wheels

kg

5200

Power





Engine model



YC4A125Z-T21

Engine rated power

kW

92

Engine rated speed

r/min

2200

Fuel oil consumption

g/kW·h

205

Travel





Travel speed 1st

km/h

0~5

Travel speed 2st

km/h

0~11

Travel speed 3st

km/h



Travel speed 4st

km/h



Main performance





Drum diameter

mm



Drum width

mm



Static linear load

N/cm

313

Vibration frequency (Low / High)

Hz

30/35

Theoretical amplitude (High / Low)

mm

1.8/0.9

Excitation force (High / Low)

kN

280/190

Compacting width

mm

2130

Min. turning diameter

mm

6800

Min. ground clearance

mm

400

Steering angle

°



Oscillating angle

°



Theoretical gradeability

%

45

Wheel base

mm

6800
