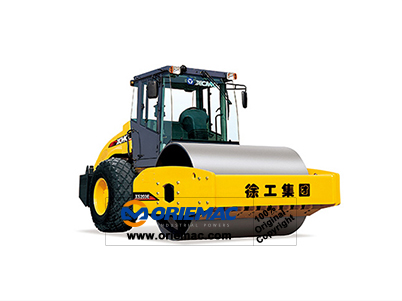

18ton Road Roller XS183E



Quick Details

Feature: Road Roller

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: XS183E

Certification: ISO,CE

Operation Weight: 18t

Static Linear Pressure: 529N/cm

Dimension: 6222*2390*3200mm

Travel Speed: 0~10km/h

Vibration Frequency: 28/33Hz

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Theoretical Amplitude: 1.86/0.93mm

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

XS183E

Overall length

mm

6222

Overall width

mm

2390

Overall height

mm

3200

Weight





Total weight in travel

kg

18000

Load on front drum

kg

11500

Load on rear wheels

kg

6500

Power





Engine model



SC8D190.1G2

Engine rated power

kW

140

Engine rated speed

r/min

2200

Fuel oil consumption

g/kW·h

223

Travel





Travel speed 1st

km/h

0~4

Travel speed 2st

km/h

0~5

Travel speed 3st

km/h

0~6.4

Travel speed 4st

km/h

0~10

Main performance





Drum diameter

mm



Drum width

mm



Static linear load

N/cm

529

Vibration frequency (Low / High)

Hz

28/33

Theoretical amplitude (High / Low)

mm

1.86/0.93

Excitation force (High / Low)

kN

340/240

Compacting width

mm

2130

Min. turning diameter

m

6500

Min. ground clearance

mm

466

Steering angle

°



Oscillating angle

°



Theoretical gradeability

%

55

Wheel base

mm

6500
