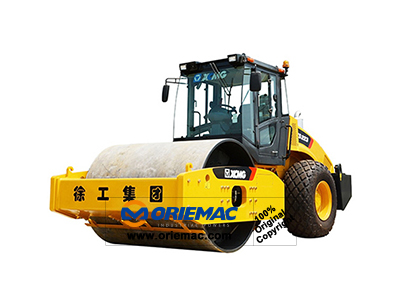

22ton Road Roller XS223

Quick Details

Feature: Road Roller	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: XS223	Certification: ISO,CE
Operation Weight: 22t	Static Linear Pressure: 704N/cm	Dimension: 6222*2430*3200mm
Travel Speed: 0~10.4km/h	Vibration Frequency: 28/33Hz	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Theoretical Amplitude: 1.86/0.93mm	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	XS223
Overall length	mm	6222
Overall width	mm	2430
Overall height	mm	3200
Weight
Total weight in travel	kg	22000
Load on front drum	kg	15000
Load on rear wheels	kg	7000
Power
Engine model		BF6M2012C
Engine rated power	kW	134
Engine rated speed	r/min	2000
Fuel oil consumption	g/kW·h	214
Travel
Travel speed 1st	km/h	0~4.2
Travel speed 2st	km/h	0~5.3
Travel speed 3st	km/h	0~6.7
Travel speed 4st	km/h	0~10.4
Main performance
Drum diameter	mm
Drum width	mm
Static linear load	N/cm	704
Vibration frequency (Low / High)	Hz	28/33
Theoretical amplitude (High / Low)	mm	1.86/0.93
Excitation force (High / Low)	kN	390/270
Compacting width	mm	2130
Min. turning diameter	m	6500
Min. ground clearance	mm	466
Steering angle	°
Oscillating angle	°
Theoretical gradeability	%	50
Wheel base	mm	6500
