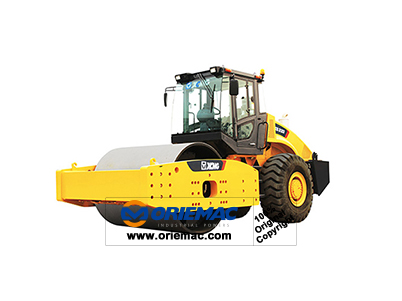

33ton Road Roller XS333

Quick Details

Feature: Road Roller	Condition: New	Application: Construction
Brand Name: XCMG	Model Number: XS333	Certification: ISO,CE
Operation Weight: 33t	Static Linear Pressure: 968N/cm	Dimension: 6690*2590*3330mm
Travel Speed: 0~9km/h	Vibration Frequency: 27/33Hz	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Theoretical Amplitude: 2.3/1.25mm	After-sales Service Provided: Engineers available to service machinery overseas

---

Packaging & Delivery

Packaging Details:	Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:	7~15 days

---

Main Features

1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly

Technical Parameters

Dimension	Unit	XS333
Overall length	mm	6690
Overall width	mm	2590
Overall height	mm	3330
Weight
Total weight in travel	kg	33000
Load on front drum	kg	21000
Load on rear wheels	kg	12000
Power
Engine model		BF6M1013FC
Engine rated power	kW	210
Engine rated speed	r/min	2200
Fuel oil consumption	g/kW·h	222
Travel
Travel speed 1st	km/h	0~4
Travel speed 2st	km/h	0~5
Travel speed 3st	km/h	0~5.5
Travel speed 4st	km/h	0~9
Main performance
Drum diameter	mm
Drum width	mm
Static linear load	N/cm	968
Vibration frequency (Low / High)	Hz	27/33
Theoretical amplitude (High / Low)	mm	2.3/1.25
Excitation force (High / Low)	kN	670/545
Compacting width	mm	2170
Min. turning diameter	m	6600
Min. ground clearance	mm	510
Steering angle	°
Oscillating angle	°
Theoretical gradeability	%	40
Wheel base	mm	6600
