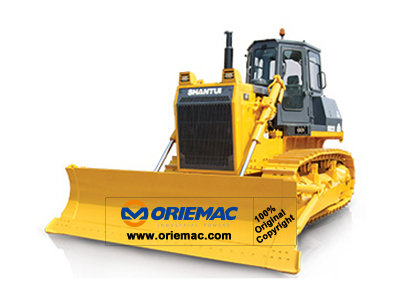

Quick Details Feature: Bulldozer Condition: New Application: Construction Brand Name: SHANTUI Model Number: SD22E Certification: ISO,CE Rated Loading Capacity: 2.46t Bucket Capacity: 6.4m3 Dimension: 5745*3725*3745mm Max. Lifting Load: 2.46t Engine: WD12G240E206 / NT855-C280S10 Place of Origin: Jiangsu, China (Mainland) Warranty: 1 year Color: Yellow After-sales Service Provided: Engineers available to service machinery overseas Packaging & Delivery Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment Delivery Detail: 7~15 days Main Features 1. More excellent performance 2. More reliable quality 3. Easier to operate 4. Easier to maintain 5. More energy-efficient and environmental friendly Technical Parameters Dimension Unit SD22E Overall length mm 5745 Overall width mm 3725 Overall height mm 3745 Ground contact length of track mm 3050 Track shoe width mm 560 Weight Total weight kg 24600 Power Engine model WD12G240E206 / NT855-C280S10 Engine rated power kW 162 Engine rated speed r/min 1800 Travel Travel speed 1st (forward/backward) km/h 0-3.6/0-4.3 Travel speed 2st (forward/backward) km/h 0-6.5/0-7.7 Main performance Operation weight t 23.4 Blade capacity m3 6.4 Gradeability 0 30 Ground pressure kpa 0.077 Shovel blade width m 3.725 Shovel blade height m 1.315 Max. hoisting height m Max. digging depth m 0.54 Max. gradient m ＞0.735 Track gauge m 2 Caterpillar track pitch m 0.216 Min. swing radius m 3.3 Min. ground clearance m 0.405
Feature: Bulldozer
Condition: New
Application: Construction
Brand Name: SHANTUI
Model Number: SD22E
Certification: ISO,CE
Rated Loading Capacity: 2.46t
Bucket Capacity: 6.4m3
Dimension: 5745*3725*3745mm
Max. Lifting Load: 2.46t
Engine: WD12G240E206 / NT855-C280S10
Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year
Color: Yellow
After-sales Service Provided: Engineers available to service machinery overseas
Packaging Details:
Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:
7~15 days
Dimension Unit SD22E Overall length mm 5745 Overall width mm 3725 Overall height mm 3745 Ground contact length of track mm 3050 Track shoe width mm 560 Weight Total weight kg 24600 Power Engine model WD12G240E206 / NT855-C280S10 Engine rated power kW 162 Engine rated speed r/min 1800 Travel Travel speed 1st (forward/backward) km/h 0-3.6/0-4.3 Travel speed 2st (forward/backward) km/h 0-6.5/0-7.7 Main performance Operation weight t 23.4 Blade capacity m3 6.4 Gradeability 0 30 Ground pressure kpa 0.077 Shovel blade width m 3.725 Shovel blade height m 1.315 Max. hoisting height m Max. digging depth m 0.54 Max. gradient m ＞0.735 Track gauge m 2 Caterpillar track pitch m 0.216 Min. swing radius m 3.3 Min. ground clearance m 0.405
Dimension
Unit
SD22E
Overall length
mm
5745
Overall width
3725
Overall height
3745
Ground contact length of track
3050
Track shoe width
560
Weight
Total weight
kg
24600
Power
Engine model
WD12G240E206 / NT855-C280S10
Engine rated power
kW
162
Engine rated speed
r/min
1800
Travel
Travel speed 1st (forward/backward)
km/h
0-3.6/0-4.3
Travel speed 2st (forward/backward)
0-6.5/0-7.7
Main performance
Operation weight
t
23.4
Blade capacity
m3
6.4
Gradeability
0
30
Ground pressure
kpa
0.077
Shovel blade width
m
3.725
Shovel blade height
1.315
Max. hoisting height
Max. digging depth
0.54
Max. gradient
＞0.735
Track gauge
2
Caterpillar track pitch
0.216
Min. swing radius
3.3
Min. ground clearance
0.405
